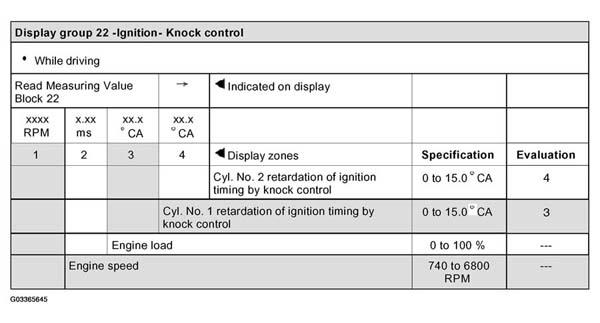

Display Group 22 - Ignition (Knock Control)
- For Evaluation 3 in Fig 1, see EVALUATING DISPLAY GROUPS 22/23, DISPLAY ZONES 3 AND 4 - RETARDATION OF IGNITION .
- For Evaluation 4 in Fig 1, see EVALUATING DISPLAY GROUPS 22/23, DISPLAY ZONES 3 AND 4 - RETARDATION OF IGNITION .
Note on display zones 3 and 4:
The displayed value should be 0.0° CA at idling.
