Malfunction Indicator Lamp (MIL), significance: Notes

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

If malfunctions are recognized and verified by the engine control module which affect exhaust emissions, they will be indicated by switching on the malfunction indicator lamp.

For location of malfunction indicator lamp (MIL), see Fig 1.

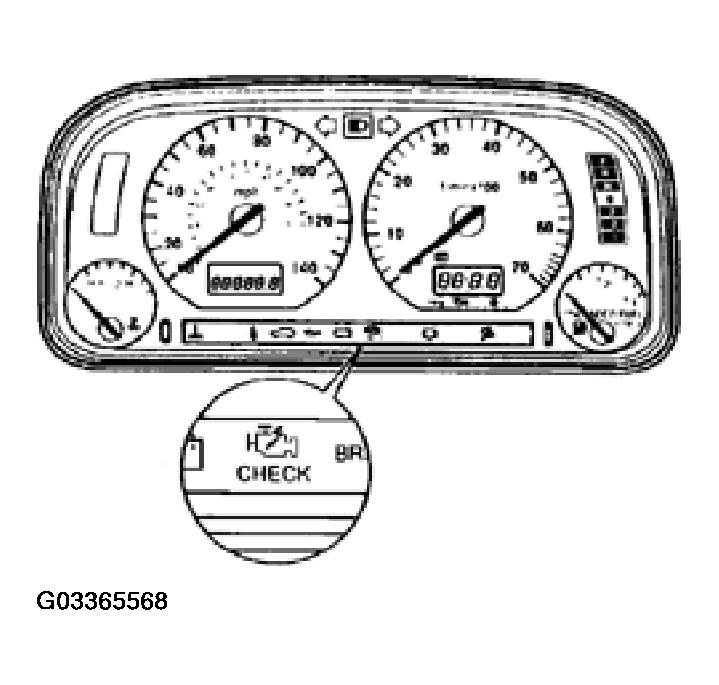

Fig 1: Location Of Malfunction Indicator Lamp (MIL)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: The MIL can be switched on in the flashing or permanently on mode. The Diagnostic Trouble Code (DTC) memory must be checked in every case. See Diagnostic Trouble Code (DTC) memory .

Flashing: There is a malfunction that can damage the Three Way Catalytic Converter (TWC) if driven in this condition. In this case, the vehicle must not be driven using wide open throttle, but with partial throttle only, during which the MIL is continuously illuminated rather than flashing.
Permanently on: There is a malfunction which will increase exhaust emissions. Check engine and/or automatic transmission control modules.
If the MIL does not light up: If there is an engine running problem, or a customer complaint of one, perform a functional check of the MIL. Then DTC memory must be checked because malfunctions that do not switch on the MIL immediately can also be stored.
