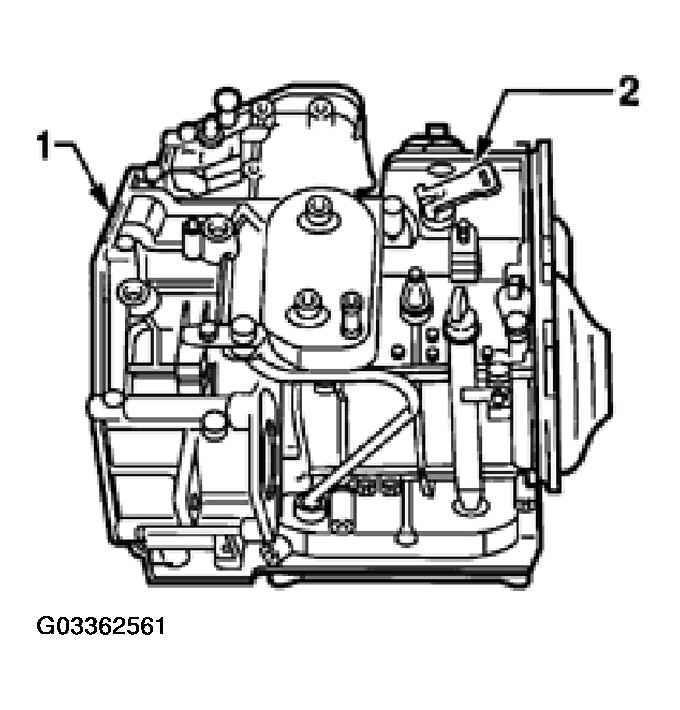

Location on transmission
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
The 4-speed automatic transmission 096 is installed in the Golf III and Jetta III beginning in the 1993 model year and the Cabrio starting in model year 1995.
It may be installed in combination with either a 4- cylinder or a 6-cylinder engine. Applications. See CODE LETTERS, MODEL/ENGINE APPLICATIONS, RATIOS, EQUIPMENT .

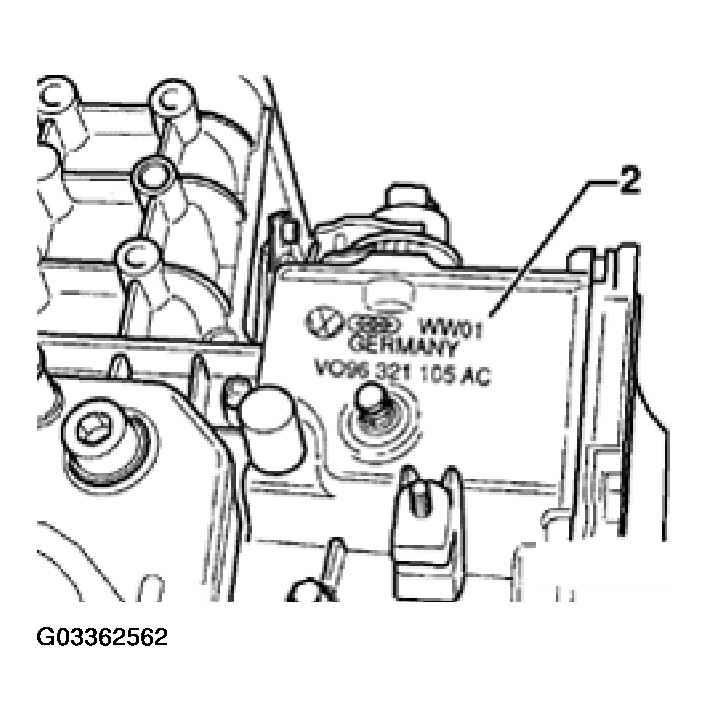

The transmission is identified by type (096), code letters and date of manufacture.
