Test requirements, Cautions, notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

See TRANSMISSION ELECTRICAL TESTING .

The Transmission Control Module (TCM) -J217- is located under the rear seat.

Switch ignition off, release multi-pin connector lock in direction of -arrow-, then disconnect from control module.

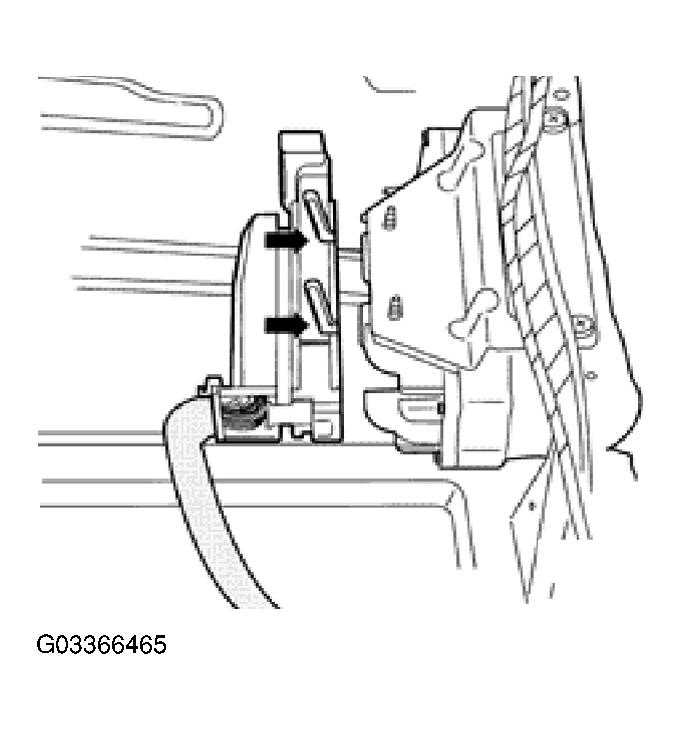

Fig 1: Removing Multi-Pin Connector Lock (68-Pin Connector)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Connect VAG 1598/18 test box to multi -pin connector -1- and lock, moving in direction of -arrow-.

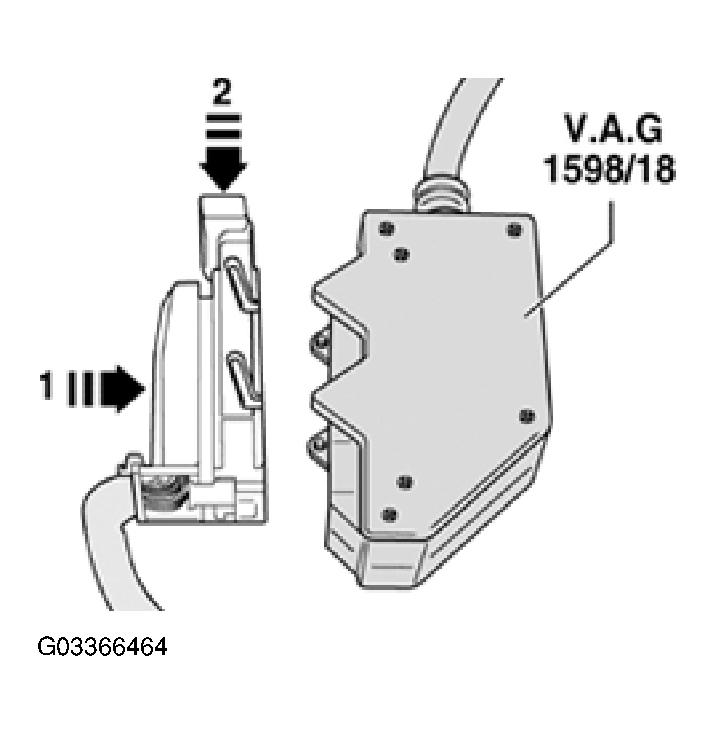

Fig 2: Connecting Vag 1598/18 Test Box To Multi-Pin Connector (68-Pin)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Wiring to and from the 68-pin TCM connector can be checked according to the wiring diagram using the VAG 1598/18 test box.

After electrical checks:

Re-connect multi-pin connector to TCM and lock.

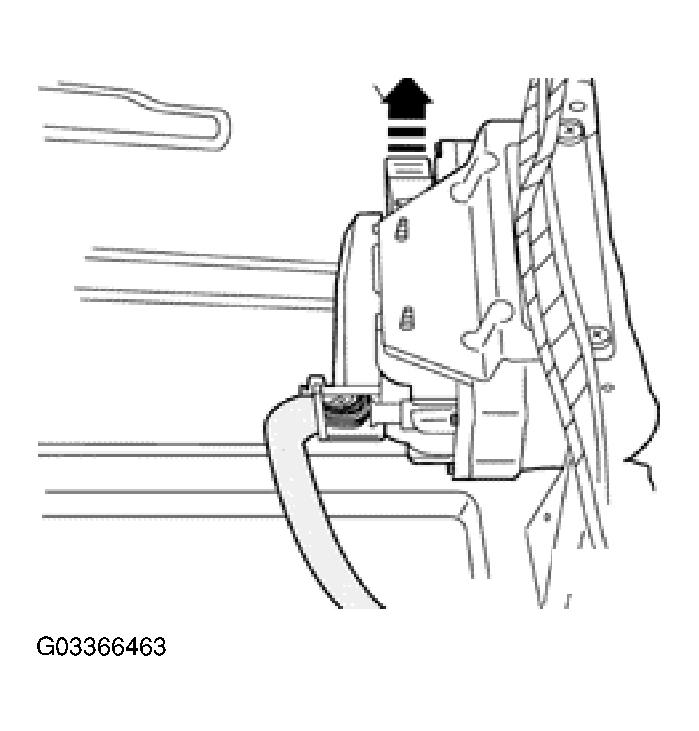

Fig 3: Connecting Multi-Pin Connector To TCM (68-Pin)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: When re-connecting, make sure that the guides (arrows) are engaged with the TCM pins.
