Transmission Control Module (TCM) -J217- location

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Up to 12.92: in front of the front passenger seat under floor covering
From 01.93: under the rear seat.

Wiring from the 38-pin TCM connector can be checked according to the wiring diagram using the VAG 1598 test box.

Switch ignition OFF.
Disconnect multi-pin connector from Transmission Control Module (TCM) -J217-.
Connect VAG 1598 test box to connector using VAG 1598/9 adapter.

Resistance measurements:

VAG 1598/9 adapter disconnected from Transmission Control Module (TCM)

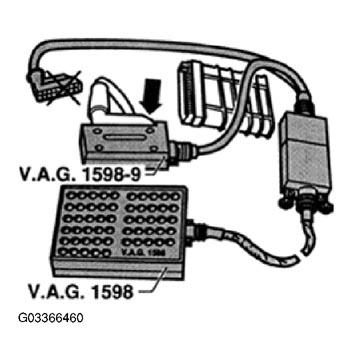

Fig 1: VAG 1598/9 Adapter Disconnected From TCM (38-Pin)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Voltage measurements:

VAG 1598/9 adapter connected to Transmission Control Module (TCM)

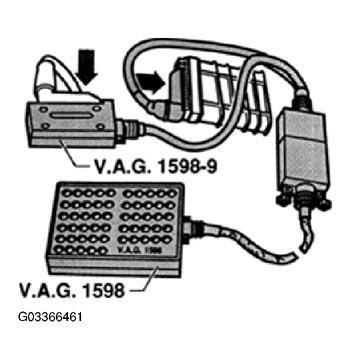

Fig 2: VAG 1598/9 Adapter Connected To TCM (38-Pin)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
