Transmissions from 01.93

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

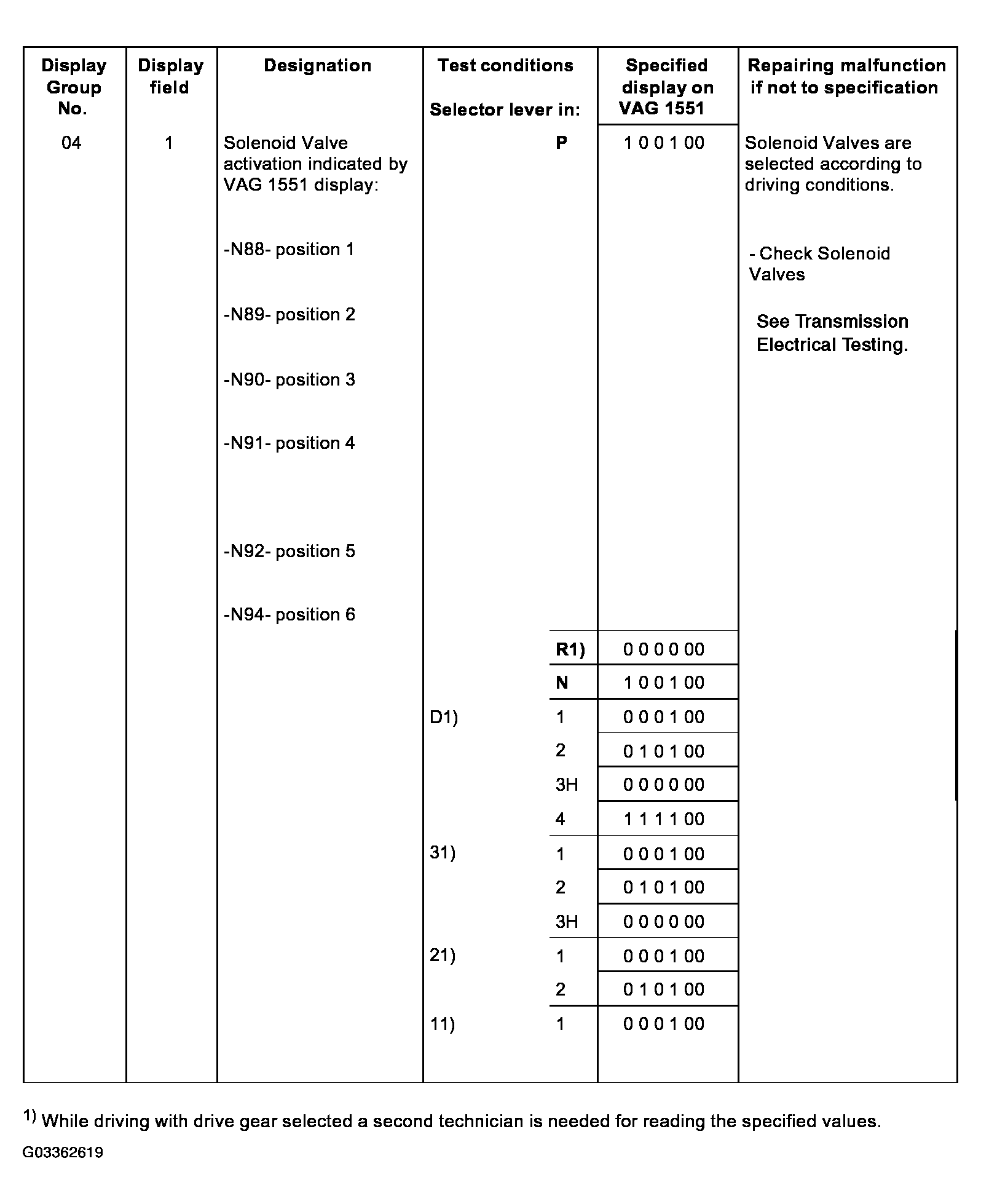

Fig 1: Display Group 04, Display Field 1 (Transmissions From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: For the previous graphic, refer to Transmission electrical testing .

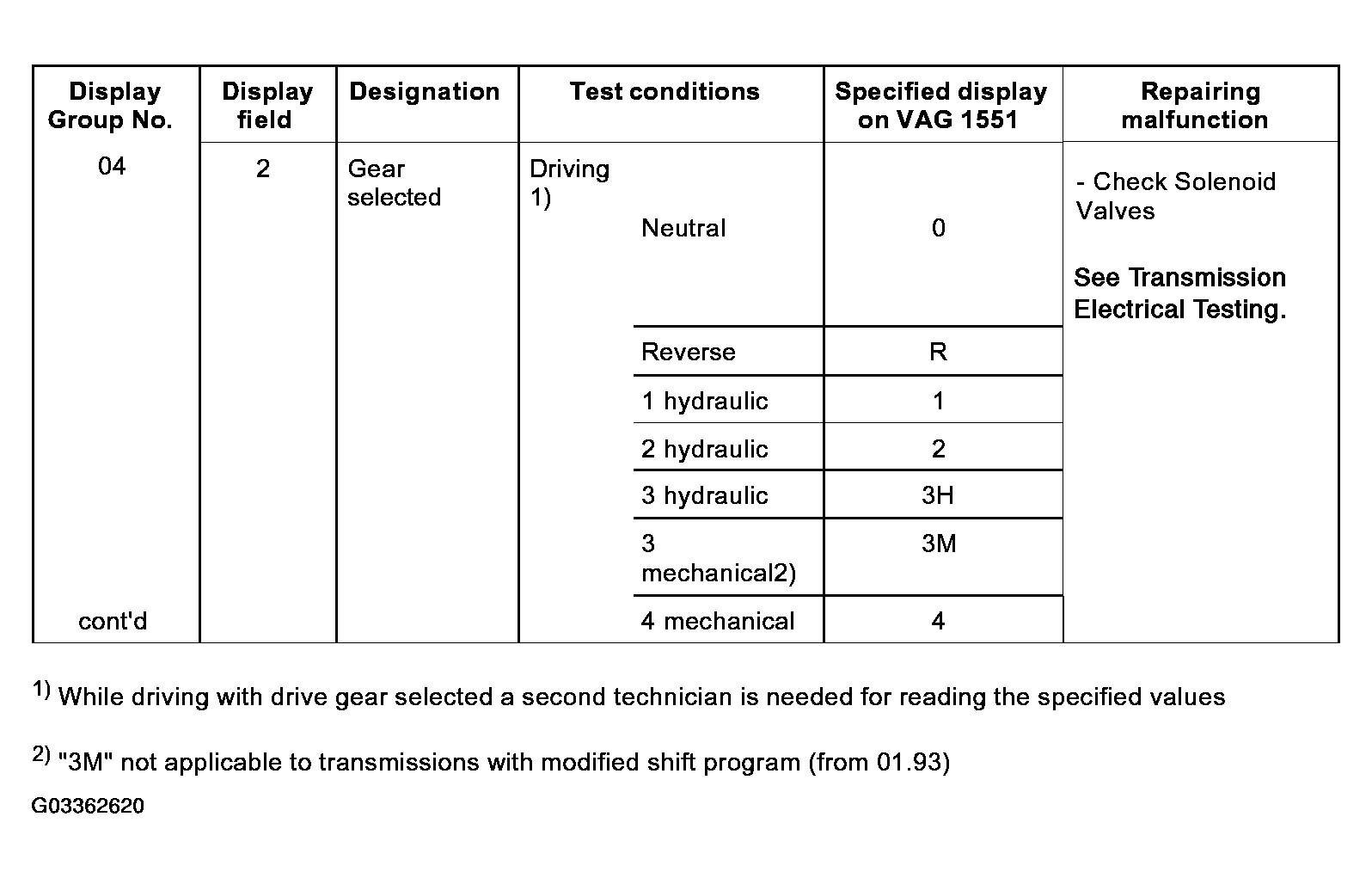

Fig 2: Display Group 04, Display Field 2 (Transmissions From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: For previous graphic, refer to Transmission electrical testing and Transmissions for vehicles with electronic program switch in Transmission Control Module (TCM) .

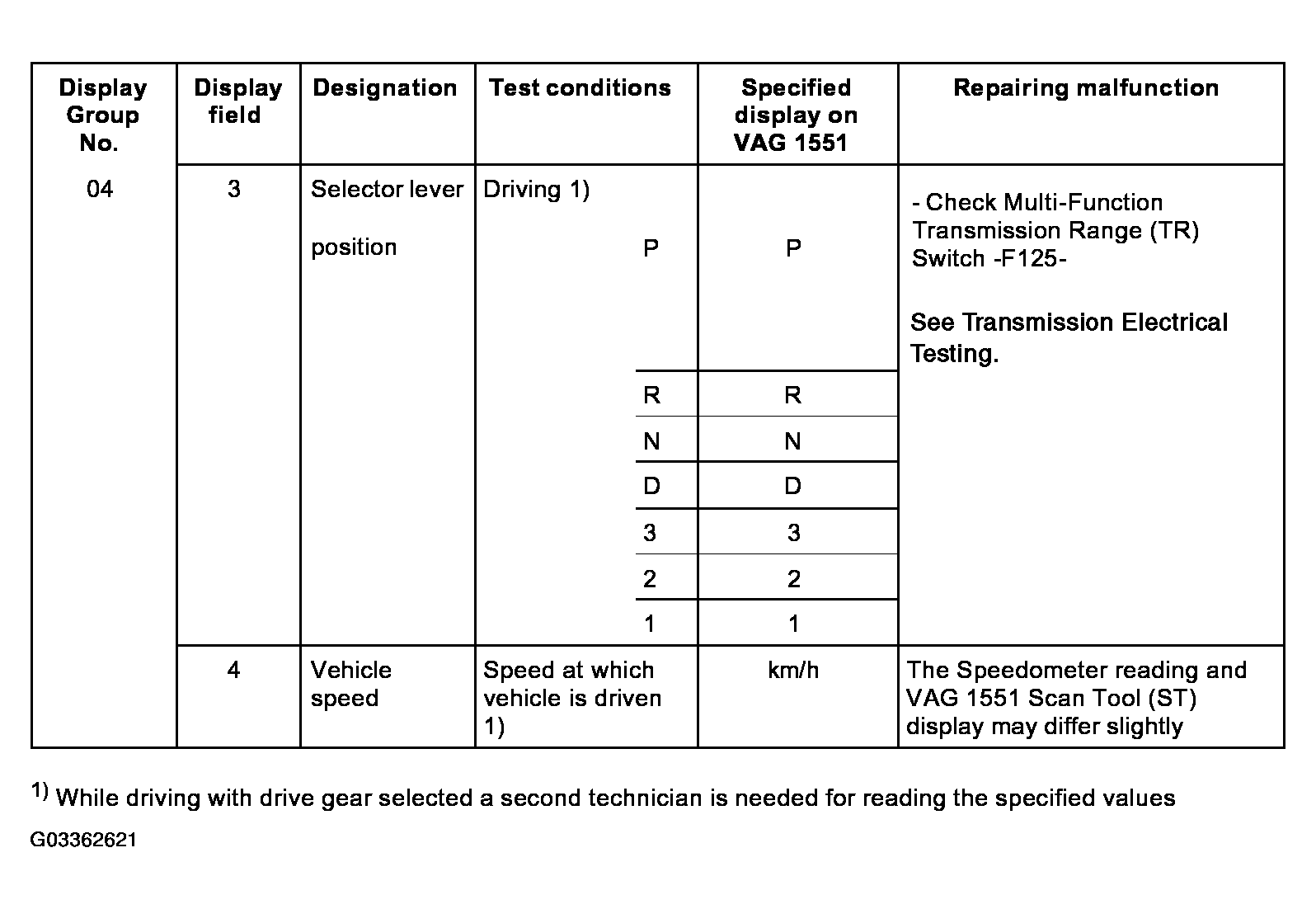

Fig 3: Display Group 04, Display Field 3 & 4 (Transmissions From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: For the previous graphic, refer to Transmission electrical testing .

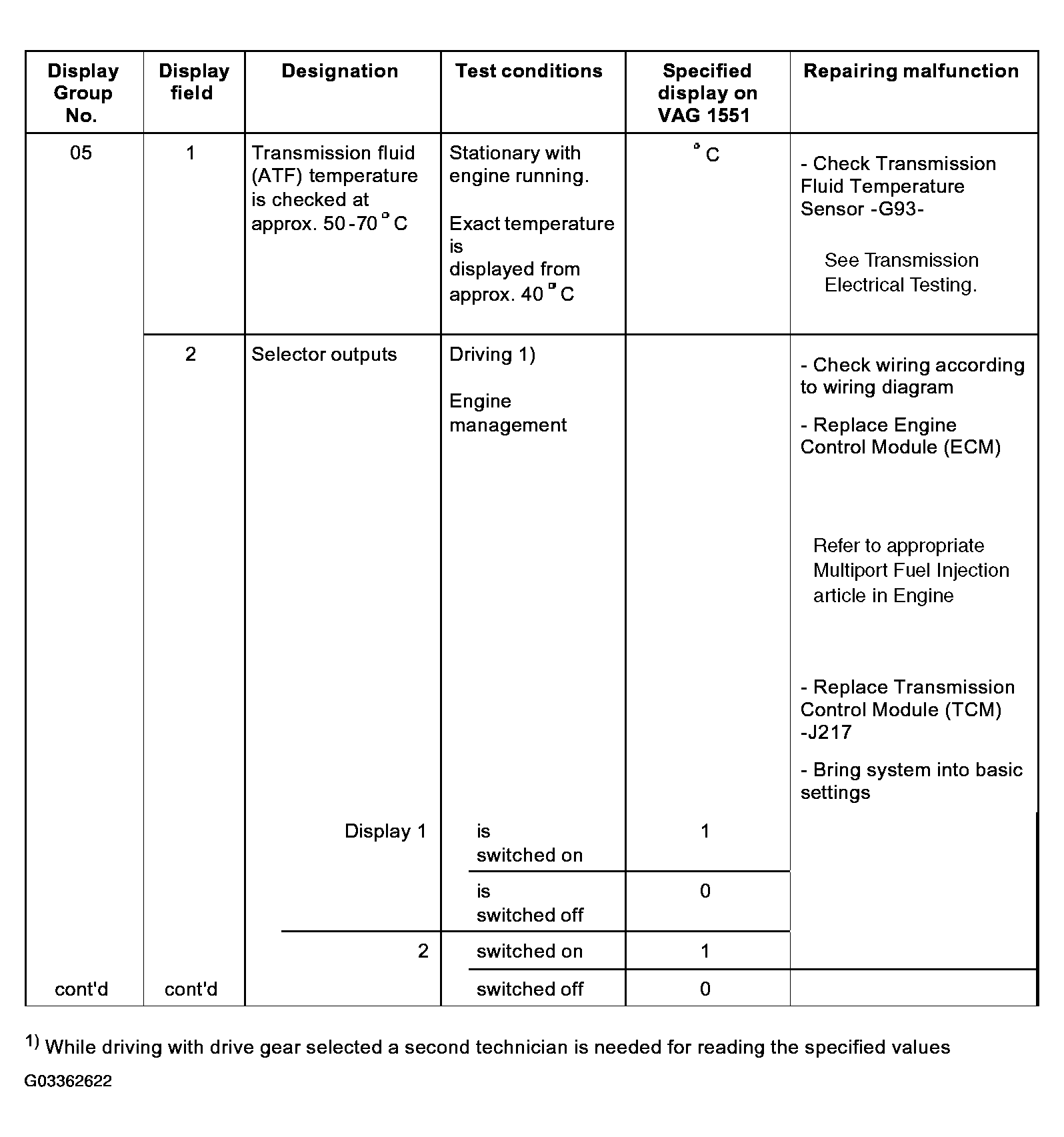

Fig 4: Display Group 05, Display Field 1 & 2 (Transmissions From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: For previous graphic:

For Transmission Electrical Testing, refer to Transmission electrical testing .
For Transmission Control Module (TCM) -J217-, refer to Electronic component locations .
For bringing system into basic settings, refer to Basic setting, initiating .

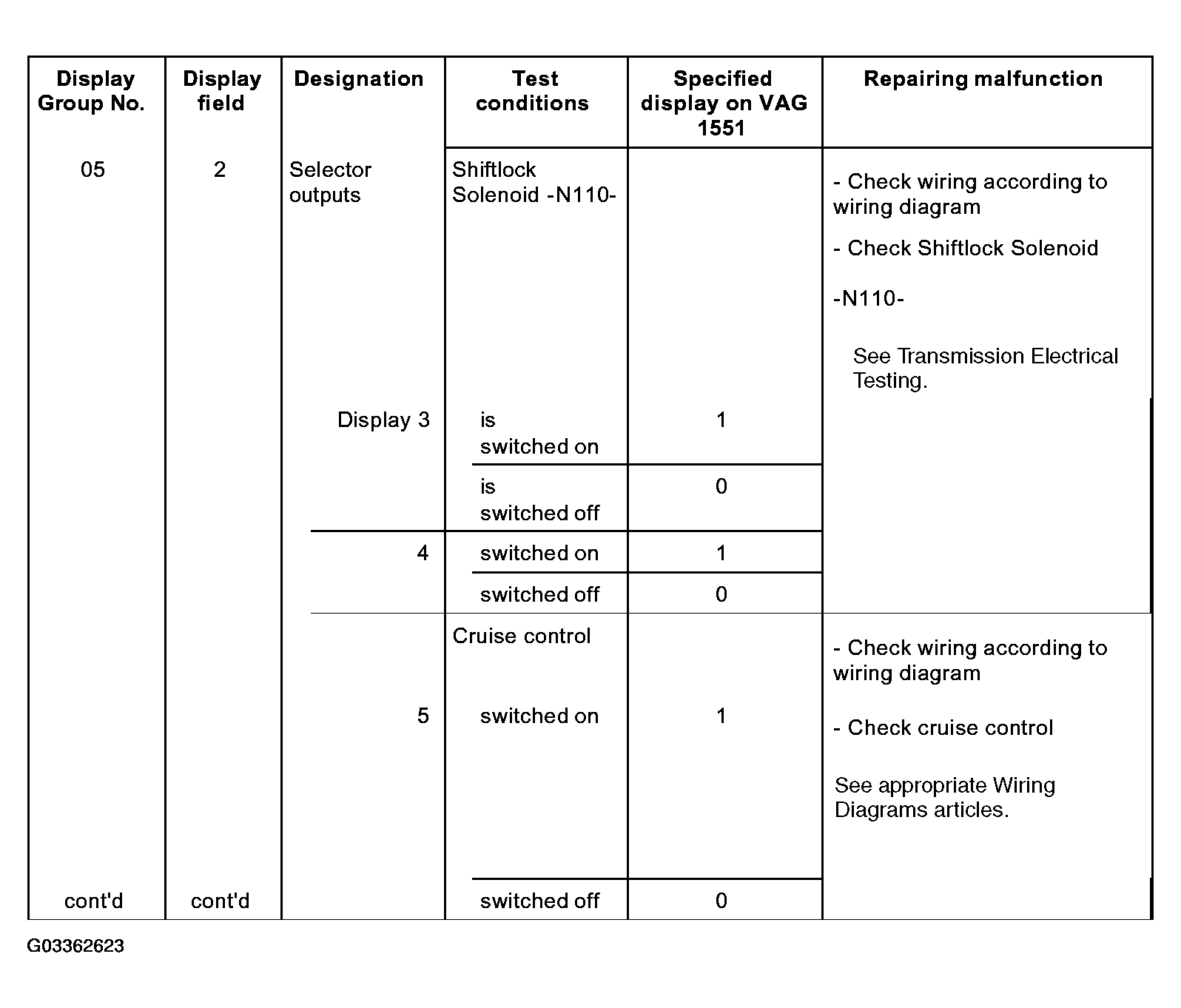

Fig 5: Display Group 05, Display Field 2 - Cont. (Transmissions From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: For the previous graphic, refer to Transmission electrical testing .

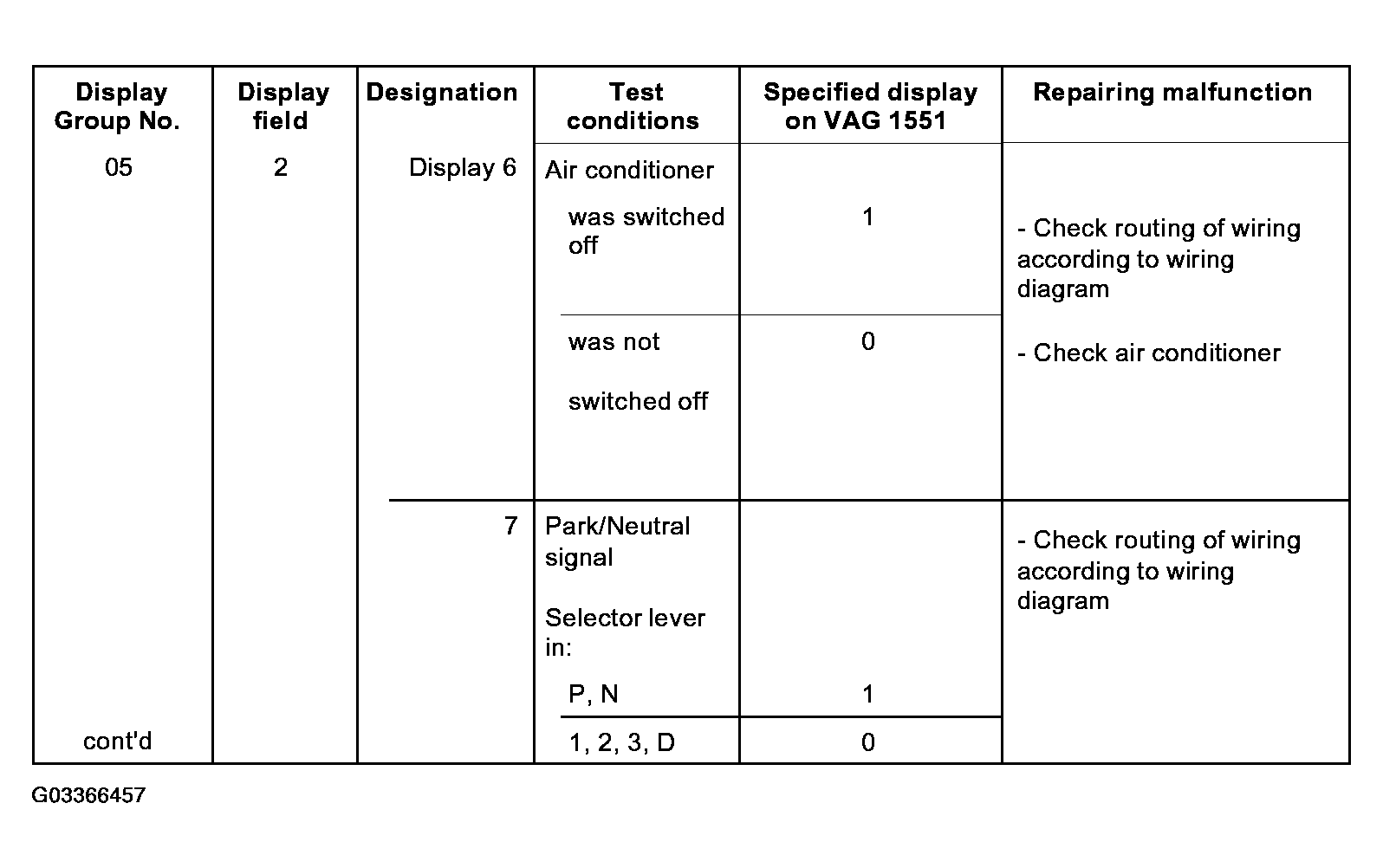

Fig 6: Display Group 05, Display Field 2 - Cont. (From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

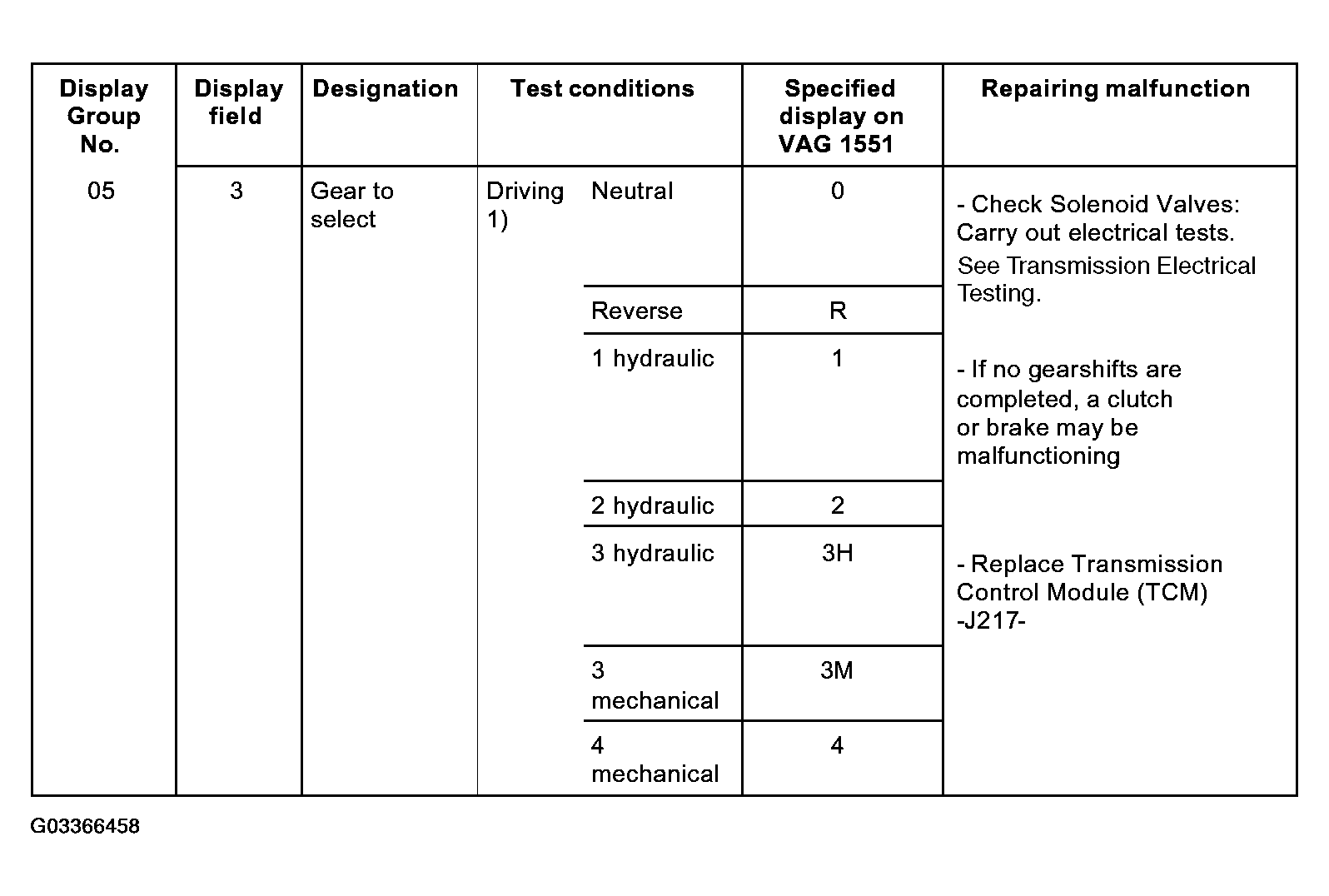

Fig 7: Display Group 05, Display Field 3 (From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: For previous graphic:

For Transmission Electrical Testing, refer to Transmission electrical testing .
For Transmission Control Module (TCM) -J217-, refer to Electronic component locations .

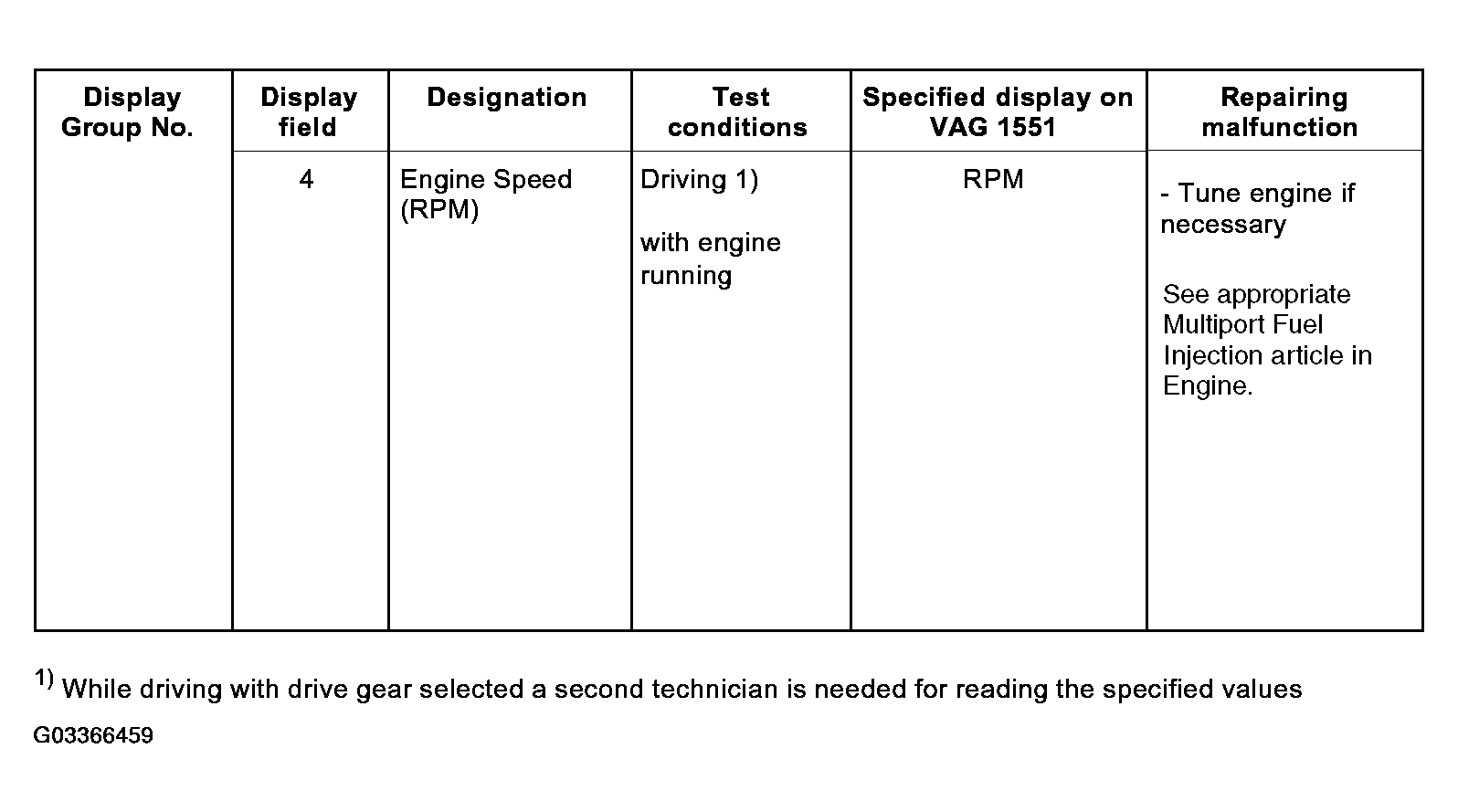

Fig 8: Display Group 05, Display Field 4 (From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
