Removing input gear

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Install socket-head fastener without dished washer, shim and axial needle bearing, just far enough so that gap -a- remains between socket-head fastener and tapered roller bearing inner race.
- Gap -a- = approx. 3 mm (0.118 in.)
Drive out input gear with VW 771 as far as the stop of the tapered roller bearing inner race.
Remove VW 771 and remove input gear.

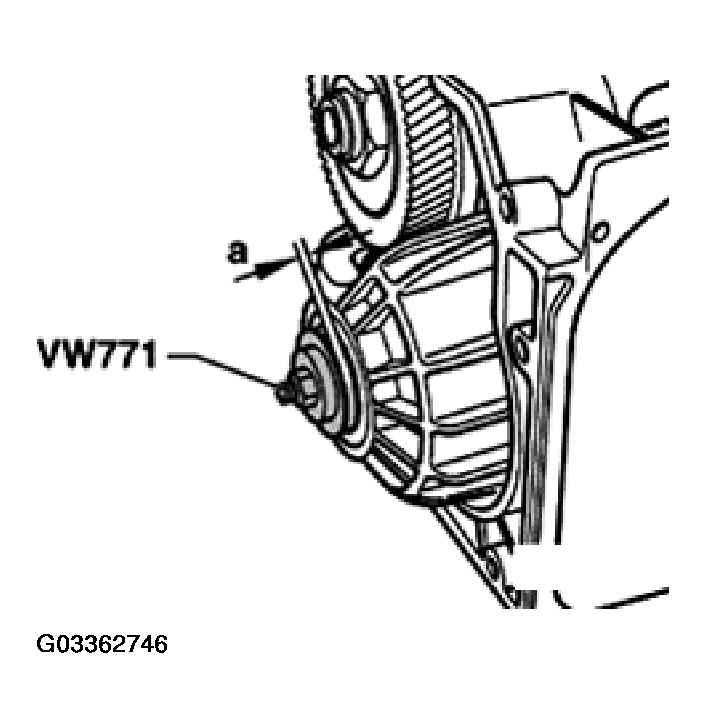

Fig 1: Removing Input Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.
