Pressing on tapered roller bearing inner race

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A press piece must be placed below the hub of the input gear to avoid damaging the input gear.

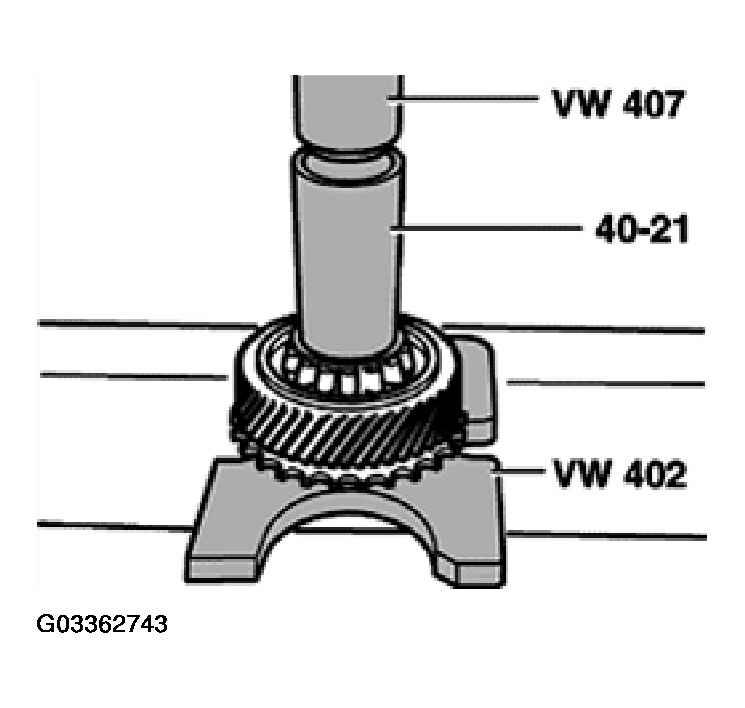

Fig 1: Pressing On Tapered Roller Bearing Inner Race
G03362743Courtesy of VOLKSWAGEN OF AMERICA, INC.
