Pulling off output gear

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

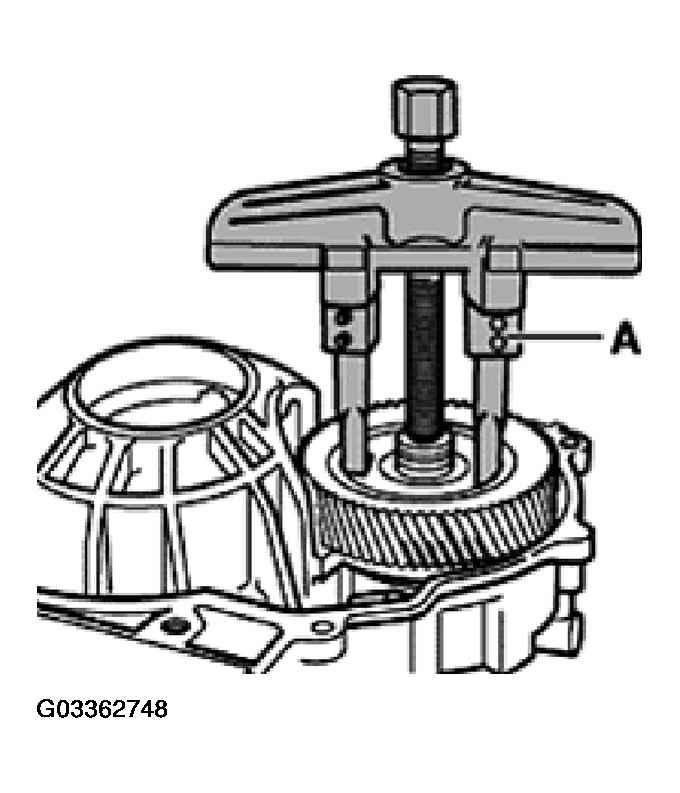

A - Kukko 20-10 and Matra V 172 pulling hooks

Fig 1: Removing Output Gear
G03362748Courtesy of VOLKSWAGEN OF AMERICA, INC.
