Input gear, adjusting: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Tighten socket-head fastener to 100 N.m (74 ft lb) without dished washer and without shim.
- The parking lock must be engaged.
A - Torque wrench

B - 22 mm socket
Remove socket-head fastener.

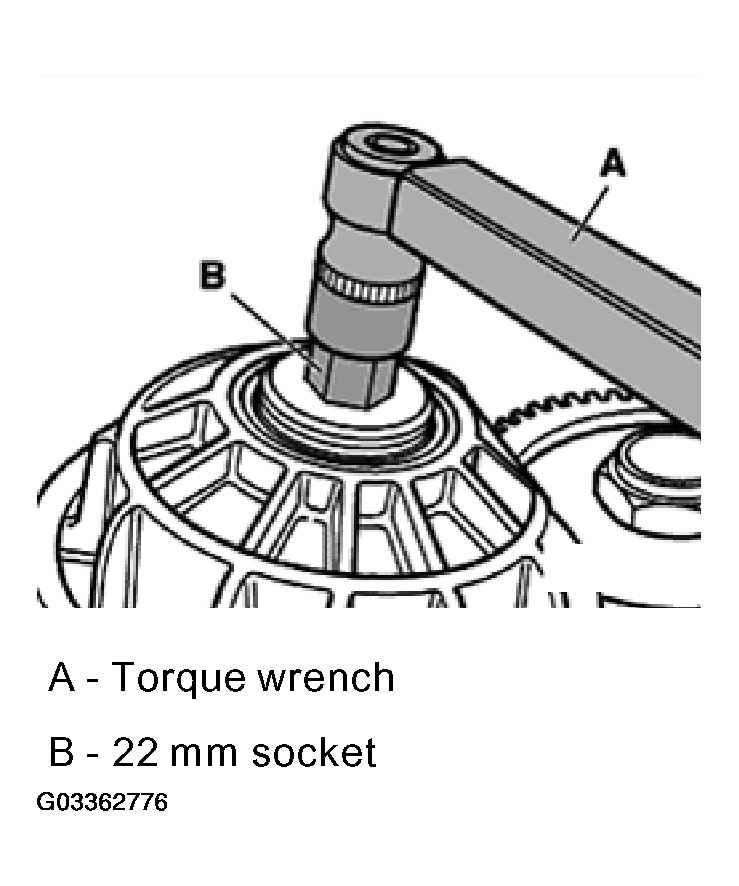

Fig 1: Tightening Socket-Head Fastener

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Measure distance between input gear and tapered roller bearing inner race.
Insert dial indicator and zero gauge with 3 mm preload. Note reading (example 1.00 mm).
The 1.50 mm thickness of the dished washer must be added to the reading.

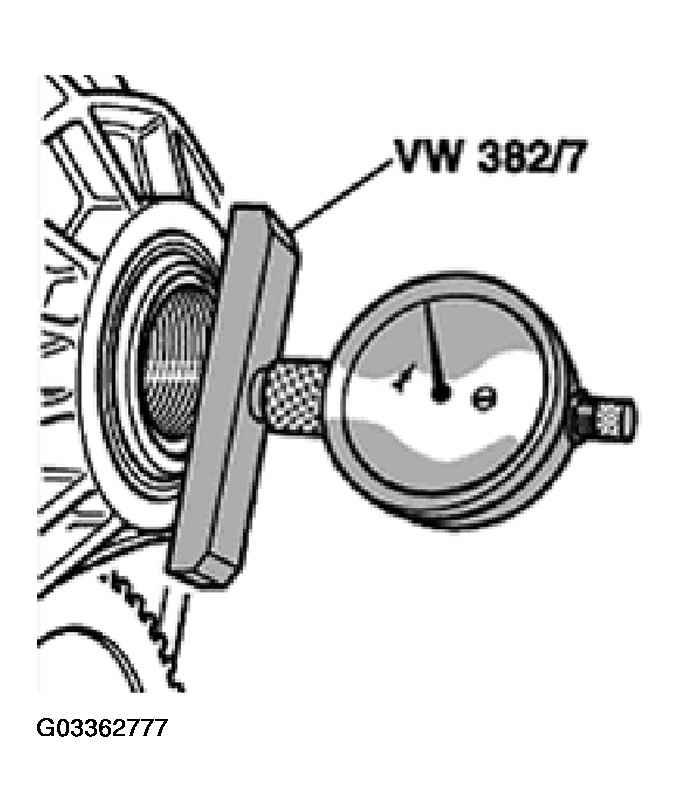

Fig 2: Inserting Dial Indicator & Zero Gauge With Preload

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Example:

1.00 mm + 1.50 mm = 2.50 mm
