Drive pinion, adjusting: Adjusting:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Place two shims (arrow), each 1.5 mm thick, onto the drive pinion.

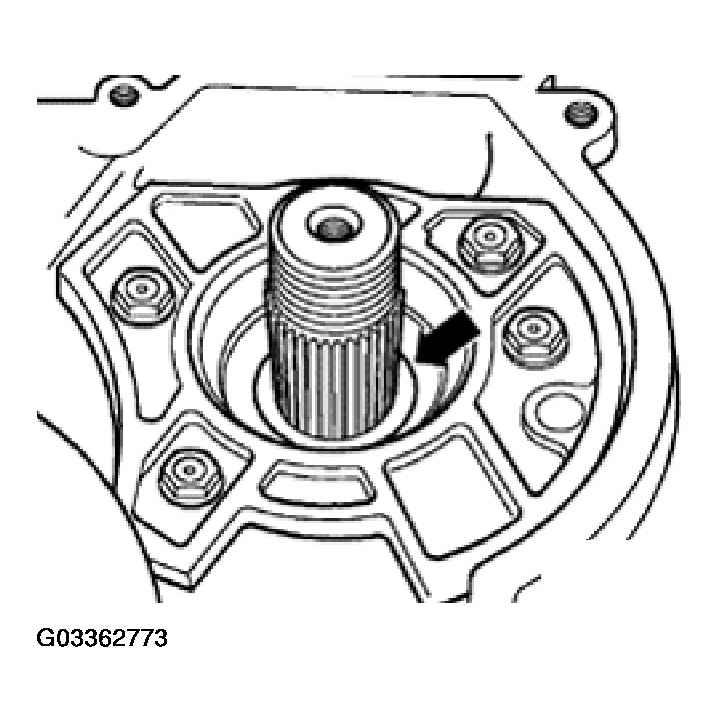

Fig 1: Placing Two Shims Onto Drive Pinion

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Place output gear with tapered roller bearing onto drive pinion and tighten hex nut (41 mm AF).
Engage parking lock when performing this step.
- Tightening torque: 250 N.m (184 ft lb)
Insert dial indicator -A- and zero gauge with 1 mm preload. Moving drive pinion up and down, read and record axial play (example 0.93 mm).

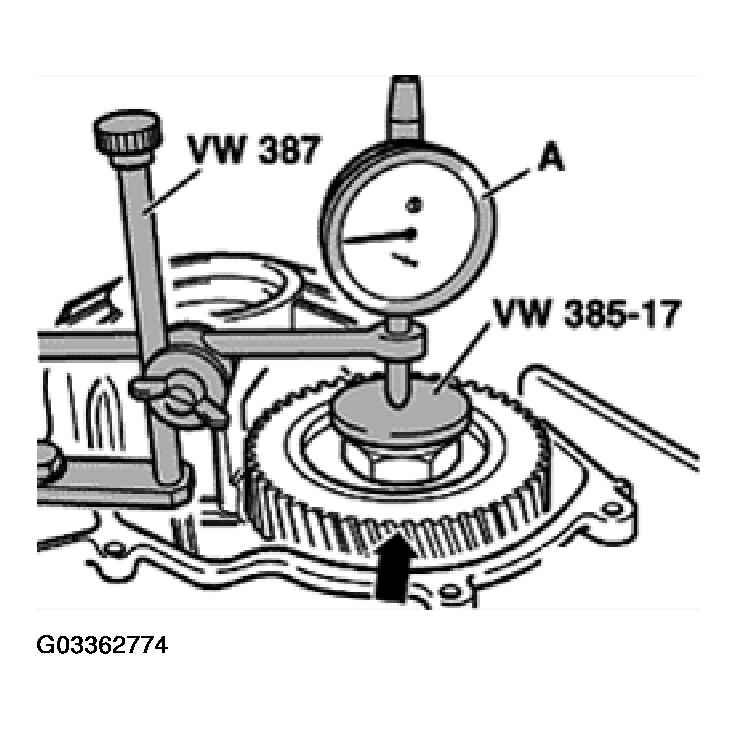

Fig 2: Inserting Dial Indicator And Zero Gauge With Preload

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Do not rotate the drive pinion while making this measurement, as the bearings will otherwise settle and falsify the result of the measurement.
