Differential, adjusting: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Tighten bearing body with tool 3155 as far as the stop and secure.
- Tightening torque: 150 N.m (111 ft lb)

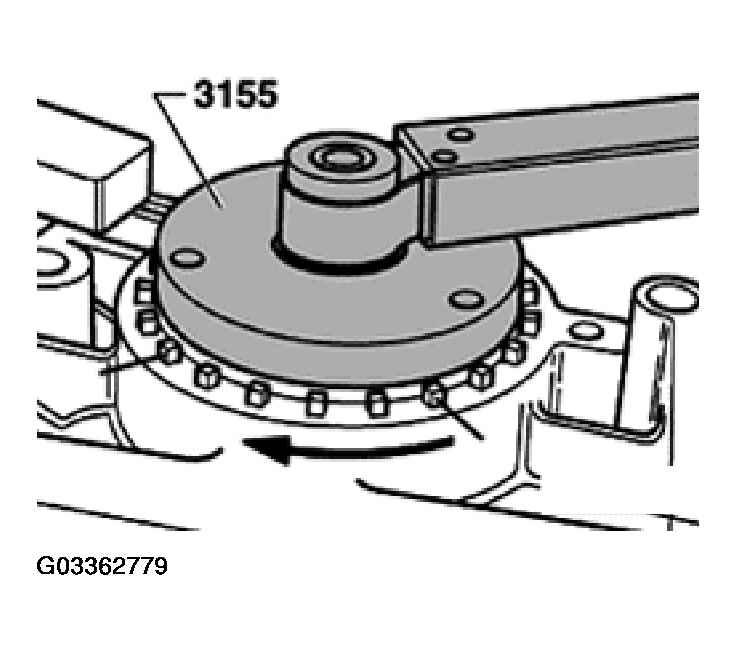

Fig 1: Tightening Differential Bearing Body With Tool 3155

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Tighten adjusting ring and mark its position.
- Tightening torque: 50 N.m (37 ft lb)

NOTE: Do not rotate the differential while making this measurement, as the bearings will otherwise settle and falsify the result of the measurement.

Turn adjusting ring again so it advances the distance of five locking lugs, then secure so that preload of tapered roller bearings is set.
