Checking friction torque
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

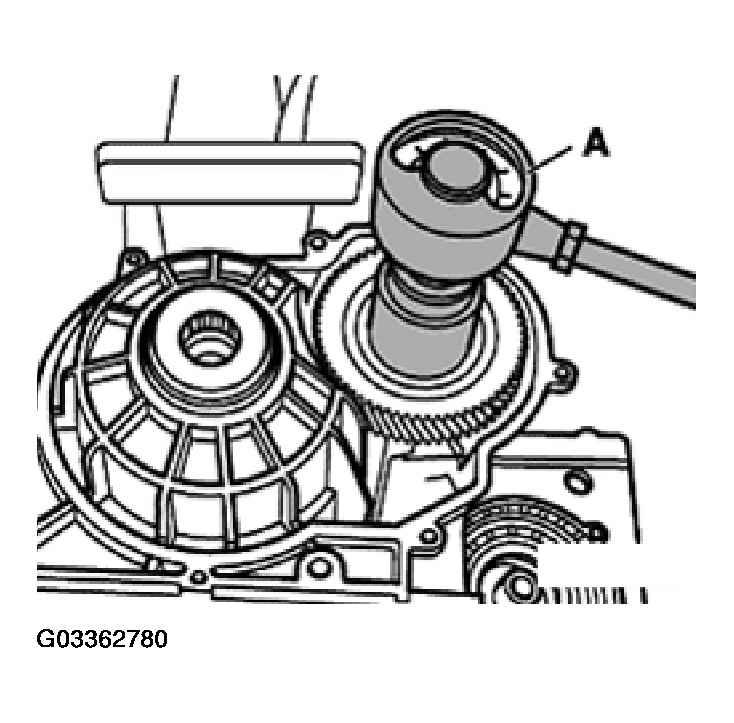

A - Torque gauge, commercially available 0-600 Ncm (0-50 in lb)
B - Socket (41 mm AF)
- Oil bearing beforehand with gear oil.
Friction Torque Example:
| Application | Friction torque | ||
|---|---|---|---|
| Drive pinion (measurement) | 300 Ncm(1) | ||
| Differential (average) | 70 Ncm | ||
| Friction torque of differential + drive pinion |
370 Ncm | ||
|
|||
