Drive flange oil seal, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
(Transmission installed)
- Disconnect drive shaft from drive flange.
When replacing right-hand oil seal:
- Remove balance weight.
- Lay drive shaft to one side and secure.
When replacing left-hand oil seal:
- Mark installation position of ball joint/control arm mounting bolts and:

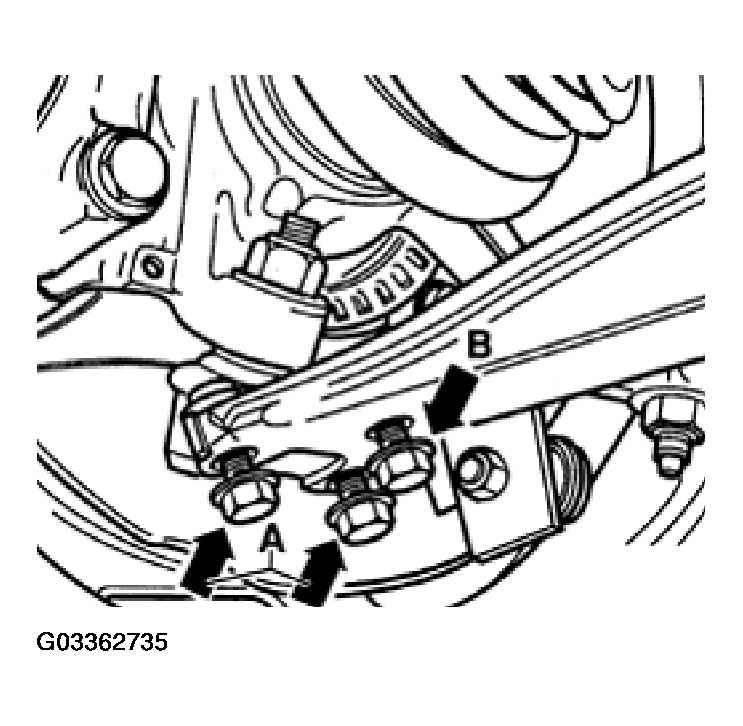

- Remove outer bolts (arrow -A-).
- Loosen inner bolt (arrow -B-).
- Turn steering to right, full lock.
- Swing ball joint out and place left-hand drive shaft to one side.

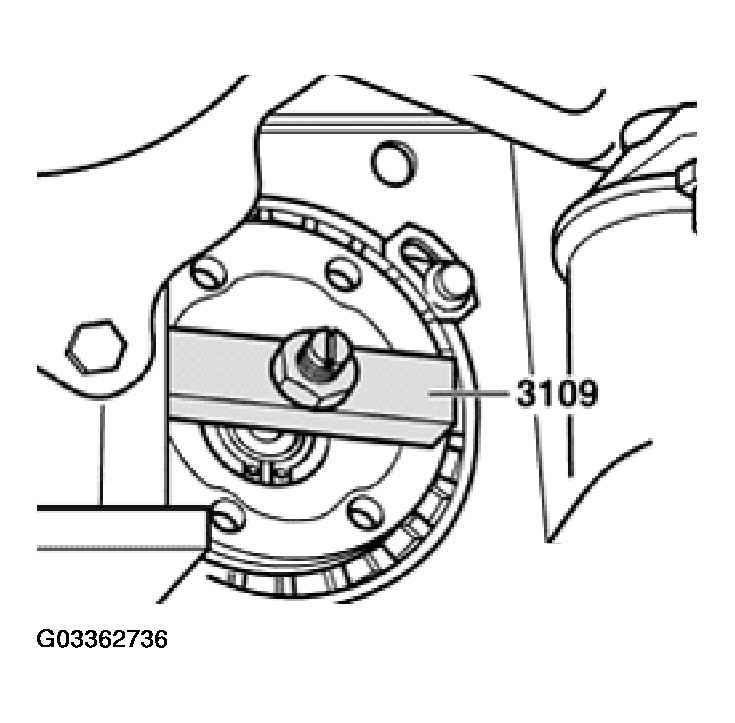

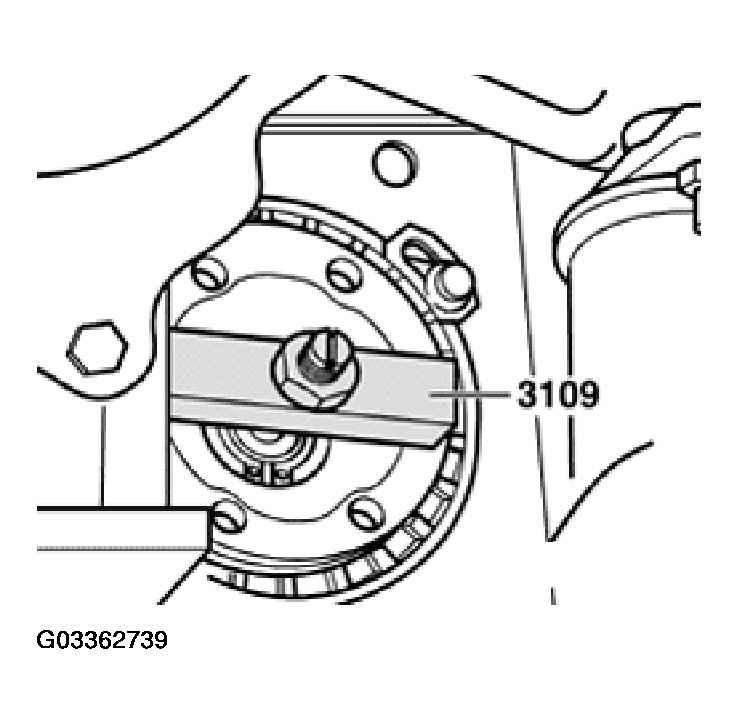

- Mount installation tool 3109 and remove circlip.

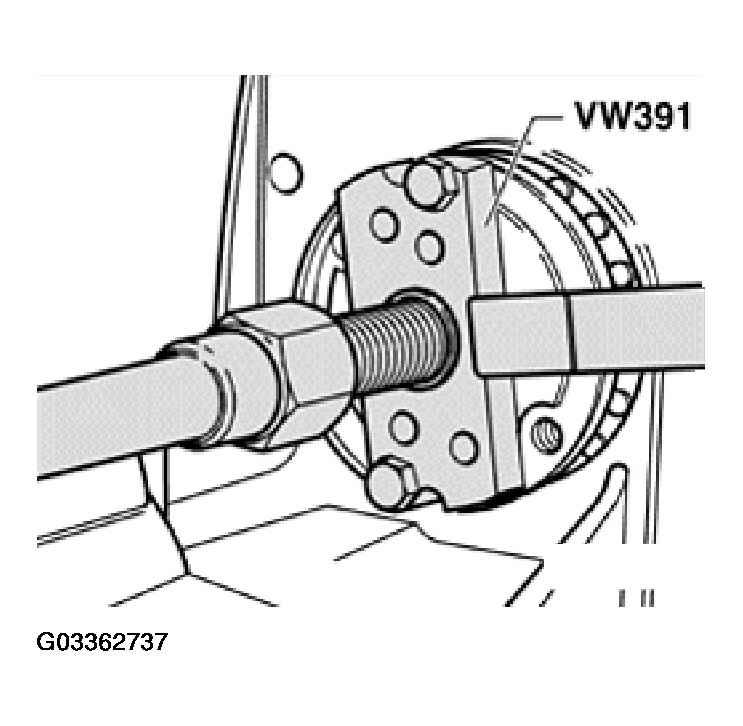

- Pull off drive flange with VW 391.
- Pull out drive flange oil seal with VW 681.

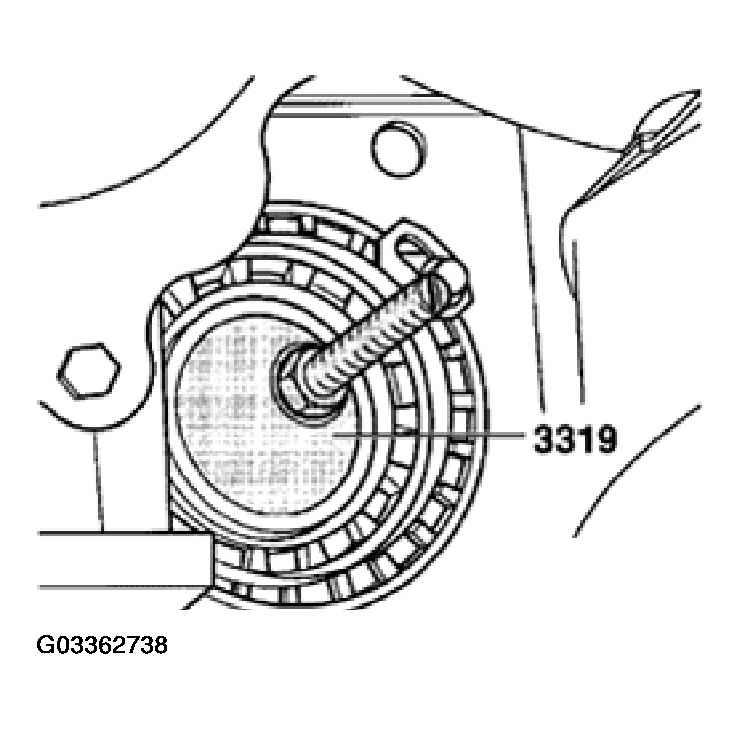

- Pull new oil seal in up to stop with press tool 3319, M10 threaded rod (approx. 80 mm or 3 -1/4 in. long) and nut with washer.
- Fill space between seal and dust lip with multi-purpose grease.
- Install drive flange, dished washer and circlip.
- Pull drive flange in.
NOTE:
Drive flange can also be pulled in with VW 391.
- Install circlip and seal drive flange with cover.
- Install drive shaft.
- Reconnect ball joint to control arm.
- With transmission installed, check final drive oil level. See Oil in final drive, checking .
