Valve body conductor strip with transmission fluid temperature sensor, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Drain Automatic Transmission Fluid (ATF)
Raise vehicle and remove protective plate beneath ATF pan.
Disconnect conductor strip harness connector.
Remove ATF pan and ATF screen.

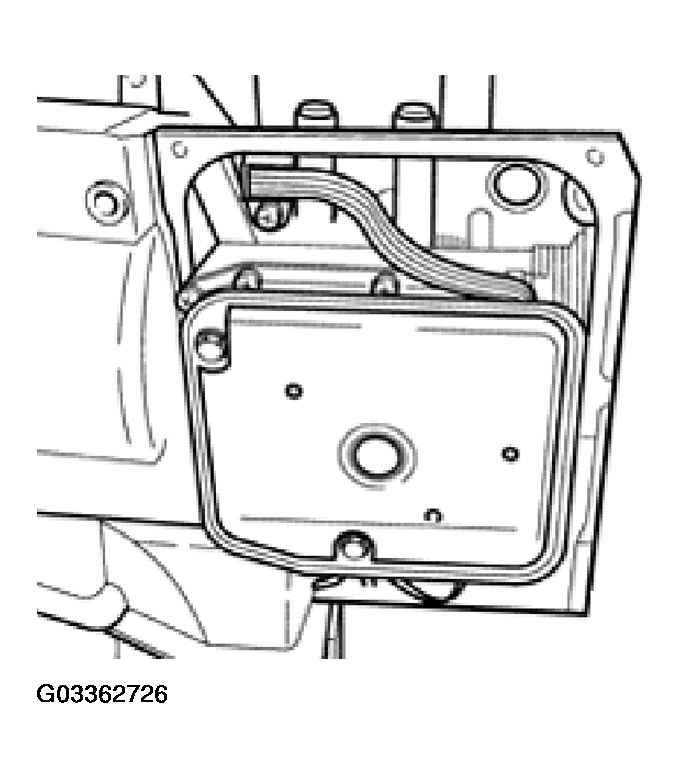

Fig 1: Removing ATF Pan And ATF Screen

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Place special tool 3373 into position on stop under solenoid valve connector, and pry conductor strip off in direction shown (arrow).
Remove bolt -1- and remove conductor strip.

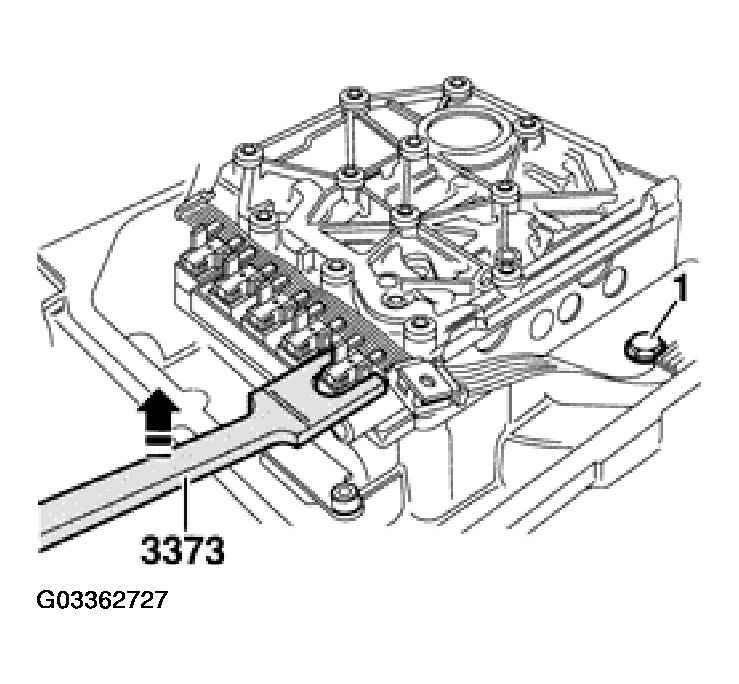

Fig 2: Placing Special Tool Into Position On Stop Under Solenoid Valve Connector & Removing Bolt

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: If the locating points are damaged, the valve body must be replaced.
