ATF pump, disassembling and assembling: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

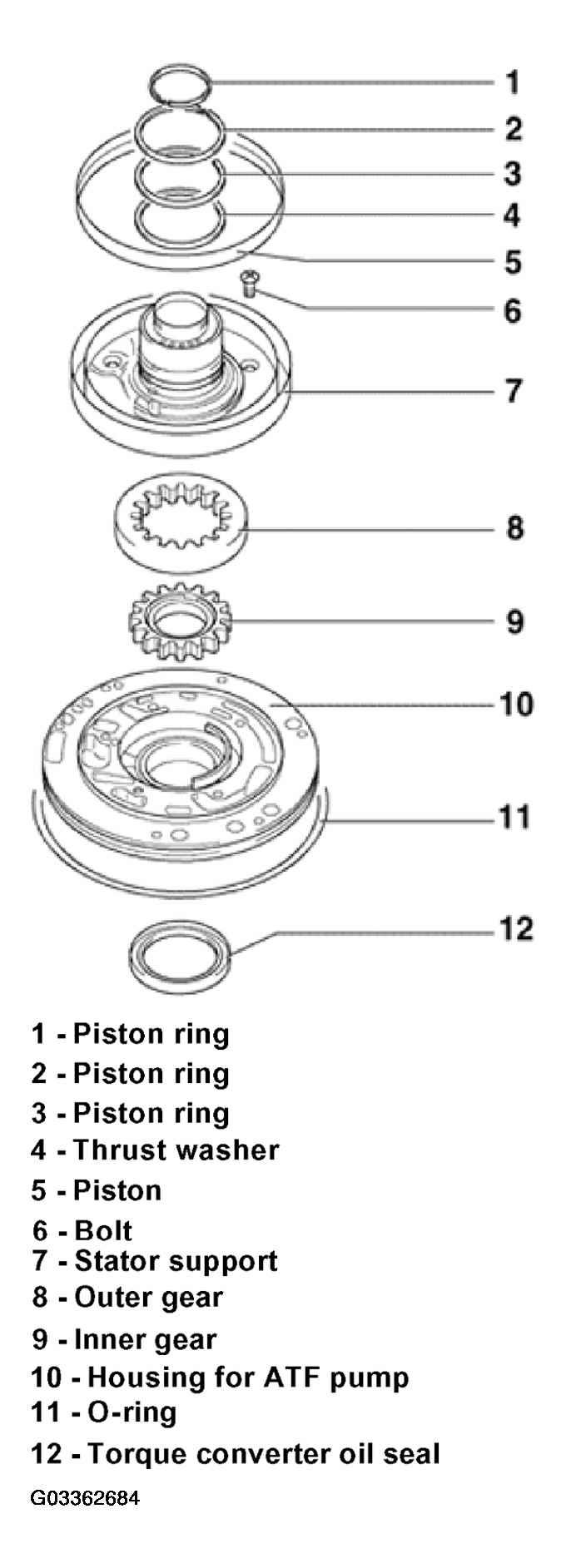

The following list refers to Fig 1.
- - Piston ring
- Check that ring is correctly located. See Checking that piston rings are correctly located .
- Installing. See Fitting and hooking ends of piston ring together .
- - Piston ring
- Check that ring is correctly located. See Checking that piston rings are correctly located .
- Installing. See Fitting and hooking ends of piston ring together .
- - Piston ring
- Check that ring is correctly located. See Checking that piston rings are correctly located .
- Installing. See Fitting and hooking ends of piston ring together .
- - Thrust washer
- - Piston
- Sealing lips are vulcanized to piston
- Moisten sealing lips with ATF before installing
- Turn piston slightly while installing
- - Bolt
- Tightening torque: 10 N.m (7 ft lb) plus additional 1/8-turn (45 °)
- - Stator support
- - Outer gear
- Manufacturer's marking faces stator support
- If outer gear is incorrectly installed, ATF pump may not operate freely in the installed position
- - Inner gear
- Larger groove faces stator support
- - Housing for ATF pump
- - O-ring
- Always replace
- - Torque converter oil seal
- Removing and installing. See TORQUE CONVERTER OIL SEAL, REMOVING AND INSTALLING .
