Checking that piston rings are correctly located

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

There is a piston ring installed on the turbine shaft inside the clutch housing (arrow).

Make sure that ends of piston rings are hooked together.

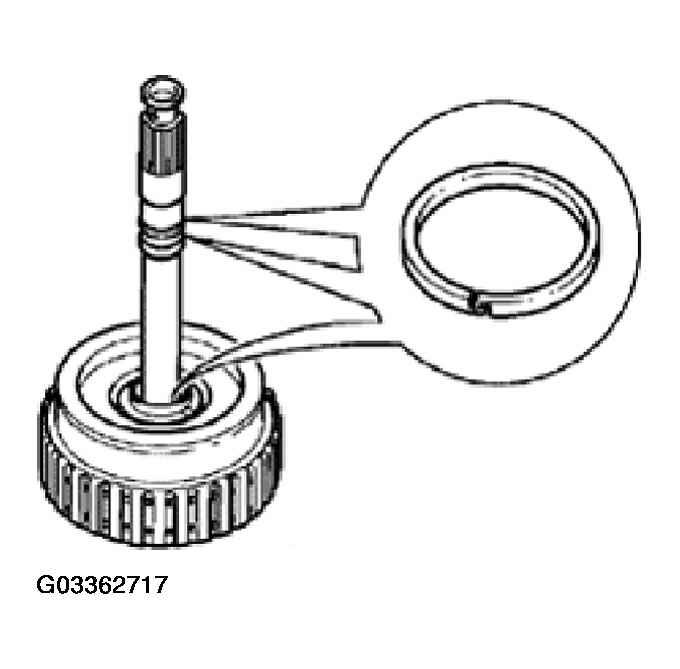

Fig 1: Checking Piston Rings: 3rd And 4th Gear Clutch With Pump Shaft (Transmissions From 01.93)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
