Transporting the automatic gearbox
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

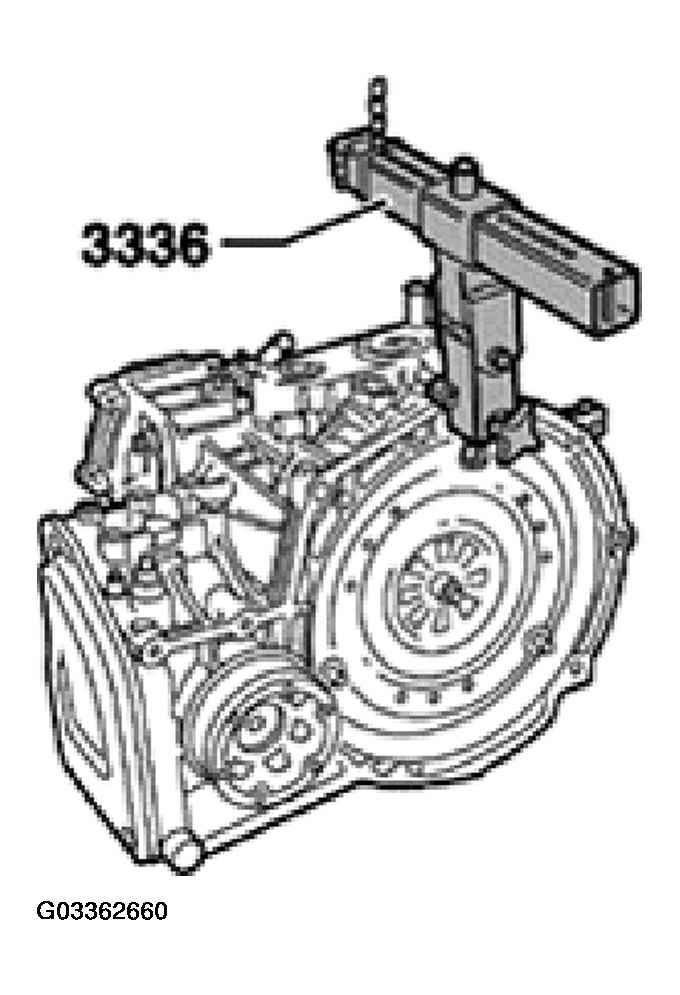

Special tool 3336 may be used to transport the automatic transmission and also when setting up transmission support 3282.
- Secure special tool 3336 to gearbox housing flange.
- Position pins so that 8 holes are visible in chain direction.
