Overview of components to adjust reverse gear brake -B1-
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

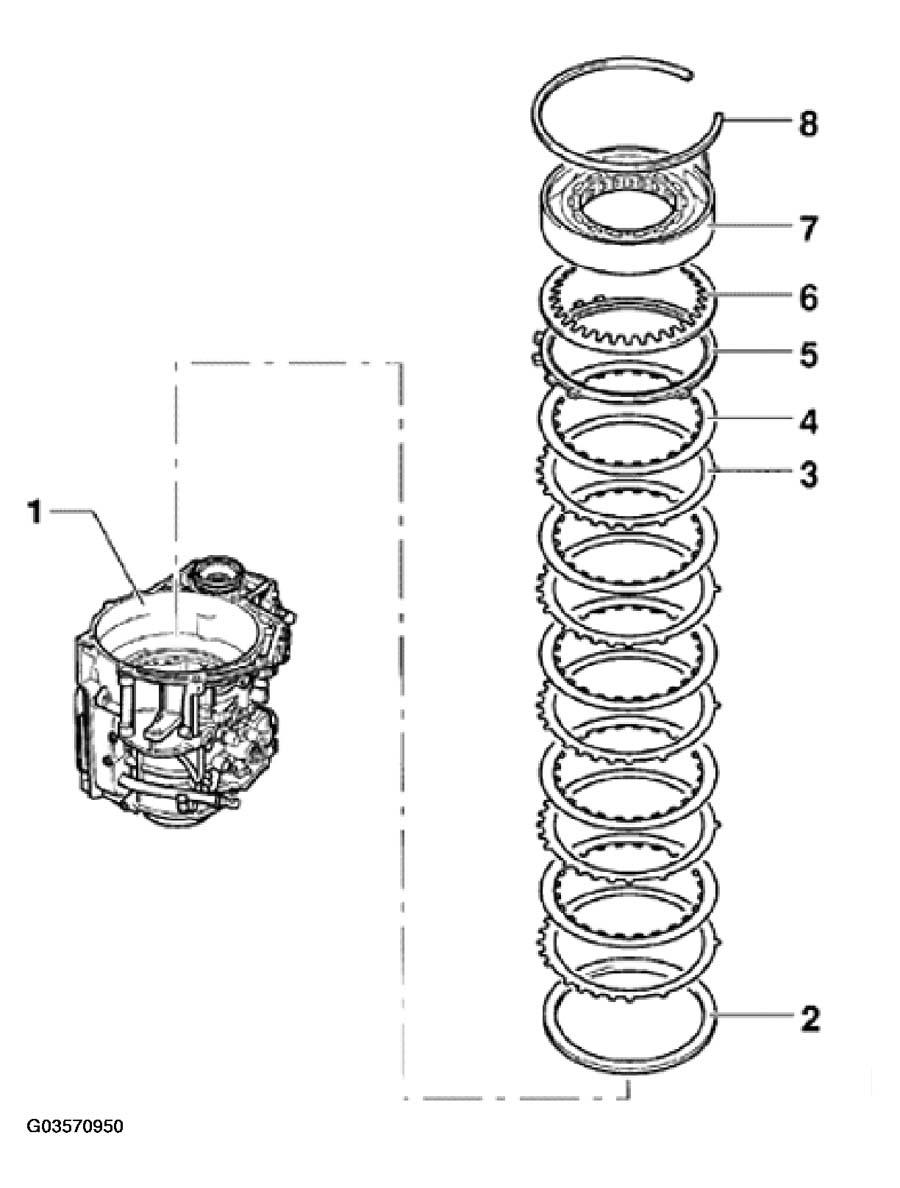

The following list refers to Fig 1.
- - Transmission housing
- - Shim
- Up to transmission build date 16 08 2: additional 3.7 mm (0.146 in.) shim for -B1- with 4 inner plates item -5-
- - Outer plate -B1-
- Quantity. See Code letters, model/engine applications, ratios, equipment .
- - Inner plate -B1-
- Quantity. See CODE LETTERS, MODEL/ENGINE APPLICATIONS, RATIOS, EQUIPMENT .
- - Pressure plate -B1-
- Install with flat side facing plates
- Differing thicknesses depending on number of inner plates installed:
Up to transmission build date 16 08 2:
- With 4 inner plates 7.5 mm (0.295 in.) (an additional 3.7 mm (0.146 in.) shim - 8- is installed)
- With 5 inner plates 7.5 mm (0.295 in.)
From transmission build date 17 08 2:
- With 4 inner plates 11.1 mm (0.437 in.)
- With 5 inner plates 7.5 mm (0.295 in.)
Transmissions from 01.93:
- With 4 inner plates 13.5 mm (0.531 in.)
- With 5 inner plates 10.5 mm (0.413 in.)
- Quantity of -B1- inner plates. See CODE LETTERS, MODEL/ENGINE APPLICATIONS, RATIOS, EQUIPMENT .
- - Dished washer
- Convex side faces towards free wheel
- - Free wheel with -B1- piston NOTE: Before removing or installing free wheel remove valve body and take out sealing plugs. See VALVE BODY, REMOVING AND INSTALLING .
- - Circlip
