Determining shim -A- thickness

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

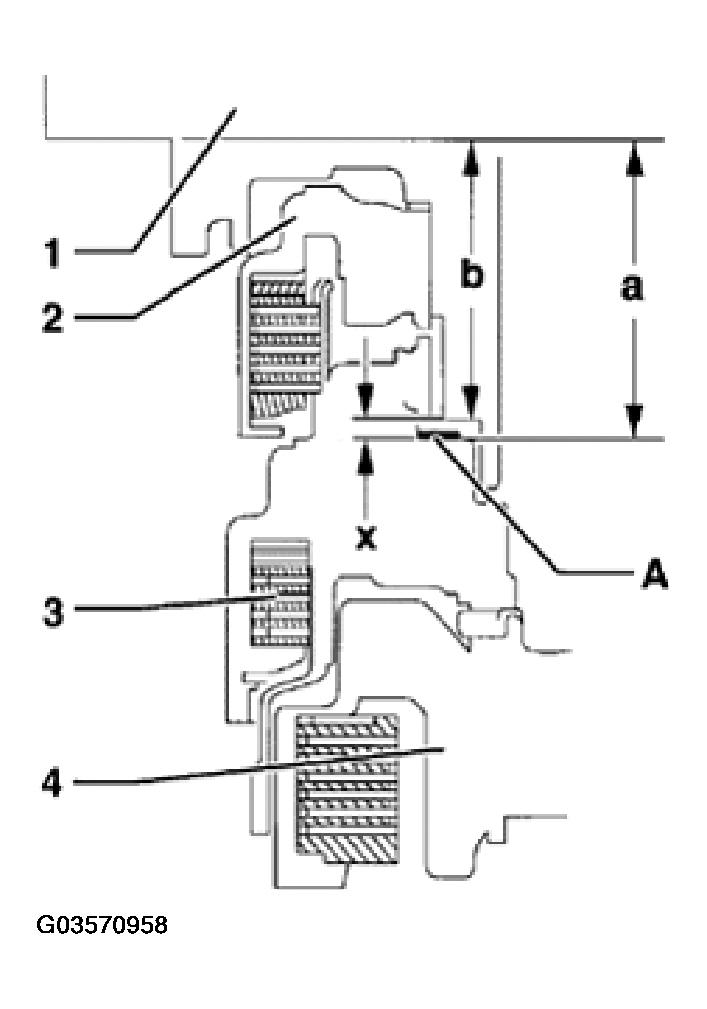

- Shim

- ATF pump
- Reverse gear clutch -K2-
- 1st to 3rd gear clutch -K1-
- 4th gear clutch -K3-

Fig 1: Inspecting Thickness Of Shim (K1, K2 And K3 Clutches)

G03570958

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: On transmissions from 01.93, clutch -K3- operates only 4th gear. See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .

Calculating thickness of shim. Determine gap "x" and calculate shim thickness.

Gap x= a - b
