ATF cooler and ATF filler tube, removing and installing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

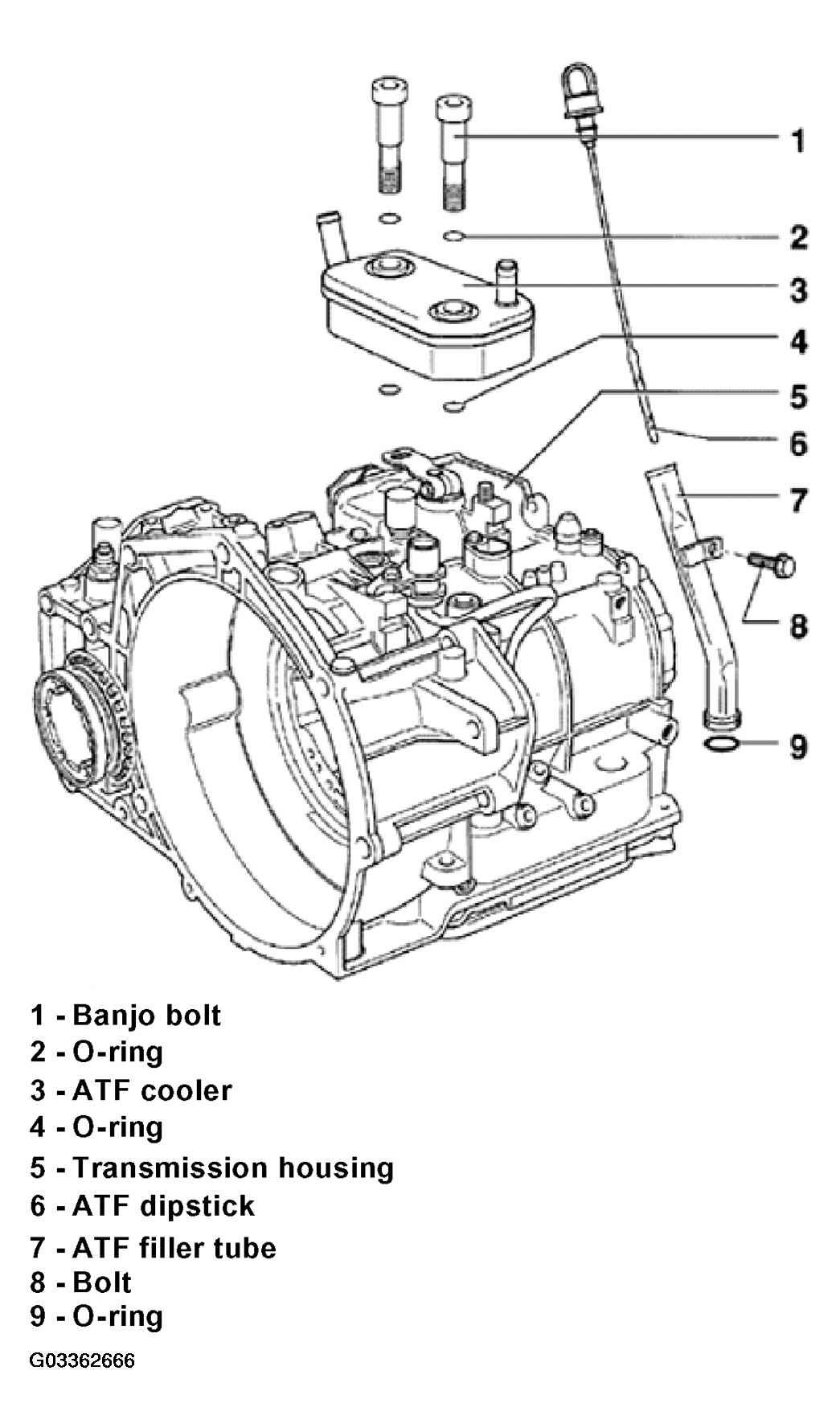

The following list refers to Fig 1.
- - Banjo bolt
- Tightening torque: 35 N.m (26 ft lb)
- - O-ring
- Always replace
- - ATF cooler
- - O-ring
- Always replace
- - Transmission housing
- - ATF dipstick
- Checking ATF level. See ATF LEVEL CHECKING AND TOPPING UP .
- - ATF filler tube
- - Bolt
- - O-ring
- Always replace
