Calculating thickness of last outer plate -A-
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

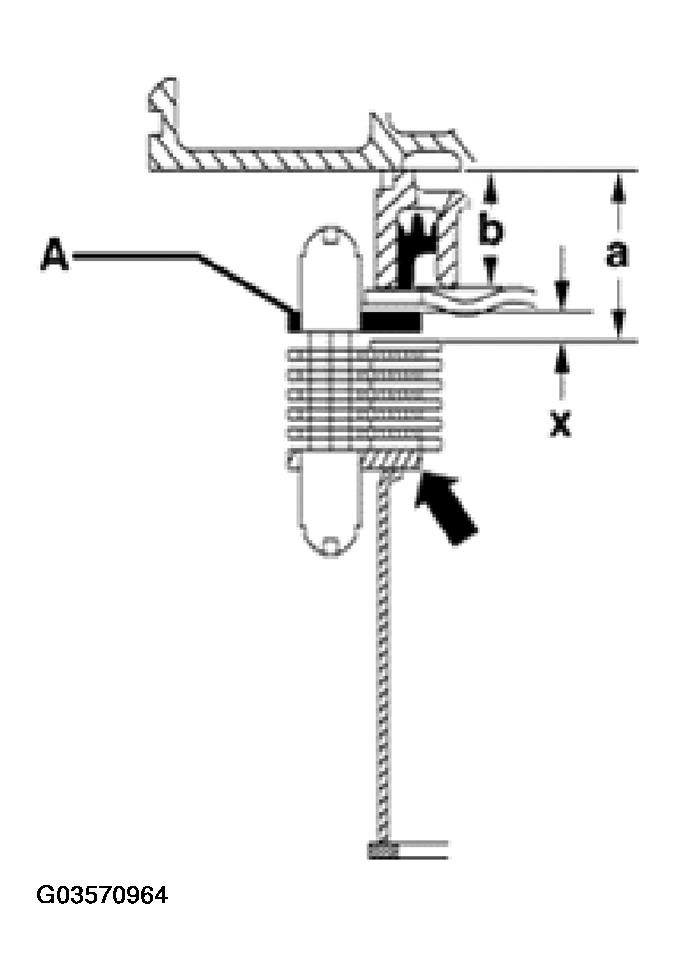

The thickness of the outer plate is determined by gap "x" and is selected from table. See TABLE OF PLATES .
Gap x = a - b - 3.6 mm
A - Outer plate
NOTE:
First outer plate (arrow) is always 3 mm thick.
