Checking conditions
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
- When checking ATF level the transmission must not be in emergency running mode.
- Vehicle parked on level surface, parking brake applied
- Selector lever at "P" and engine running at idle speed

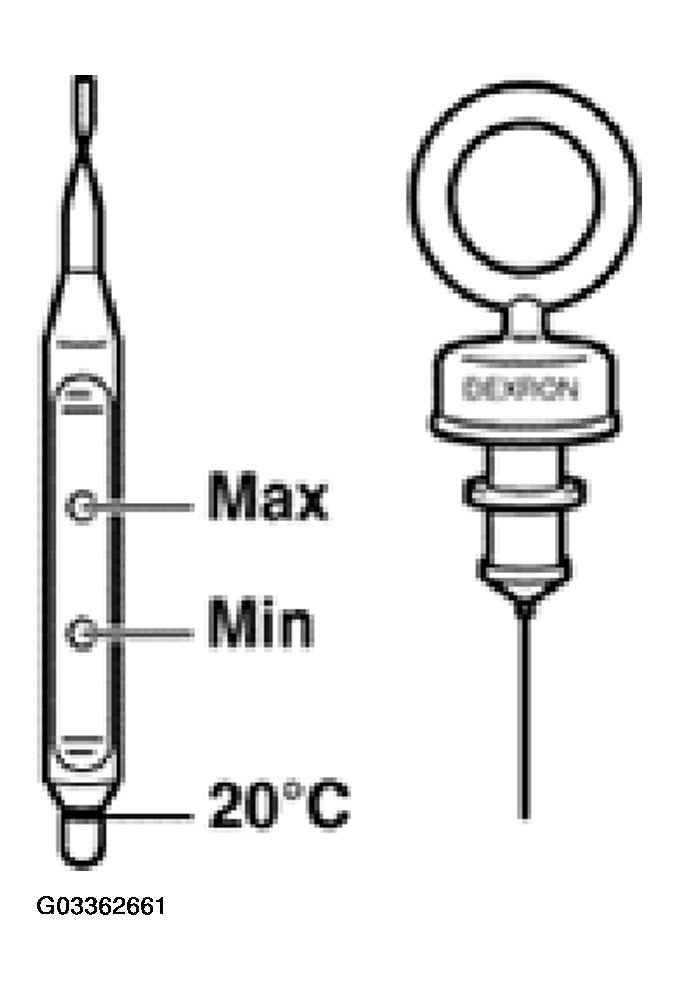

- When cold, the ATF should be visible up to the 20 °C marking
- Bring ATF up to normal operating temperature - approx. 60 °C (140 °F)
Operating temperature is measured with VAG 1551 Scan Tool (ST). See Reading measured value block . Check ATF level again and top up or extract as necessary.
It is essential that the ATF level is between the Min. and Max. markings.
CAUTION:
Too much or too little ATF will affect the operation of the transmission. The ATF level must therefore be checked at regular intervals.
