Fuel Injectors, removing and installing: Removing

WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Remove injection lines using 3035 wrench.
Remove injectors using 27 mm socket.

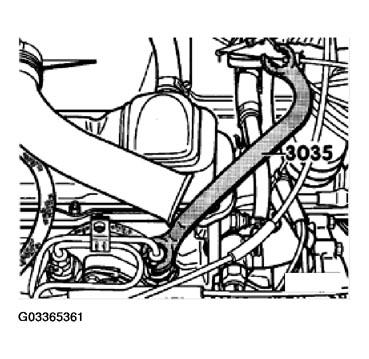

Fig 1: Removing Injection Lines Using 3035 Wrench

CAUTION:

Always remove the complete set of lines.
Do not alter shape of the lines.
