Engine removed:
WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

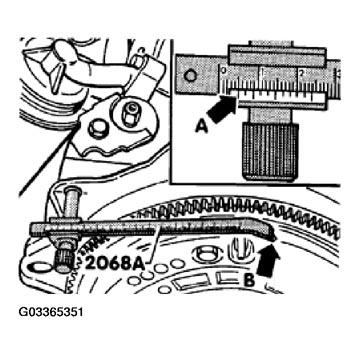

- Thread in adjusting tool as illustrated.
- Set adjusting tool to 5.0 mm.
- Reference point: graduation on left side of vernier scale -arrow A -.
- Rotate crankshaft until TDC mark on flywheel is aligned with tip of adjusting tool -arrow B -.
