Diesel injection pump connector, stopping leaks: Notes

WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1 .

- Seal
- Pressure valve assembly
- Connector
- Loosen injection line.
- Tighten connector.
  - 45 Nm (33 ft lb)
- Tighten injection line.
  - 25 Nm (18 ft lb)

If this does not stop leak, install new connector and seal.

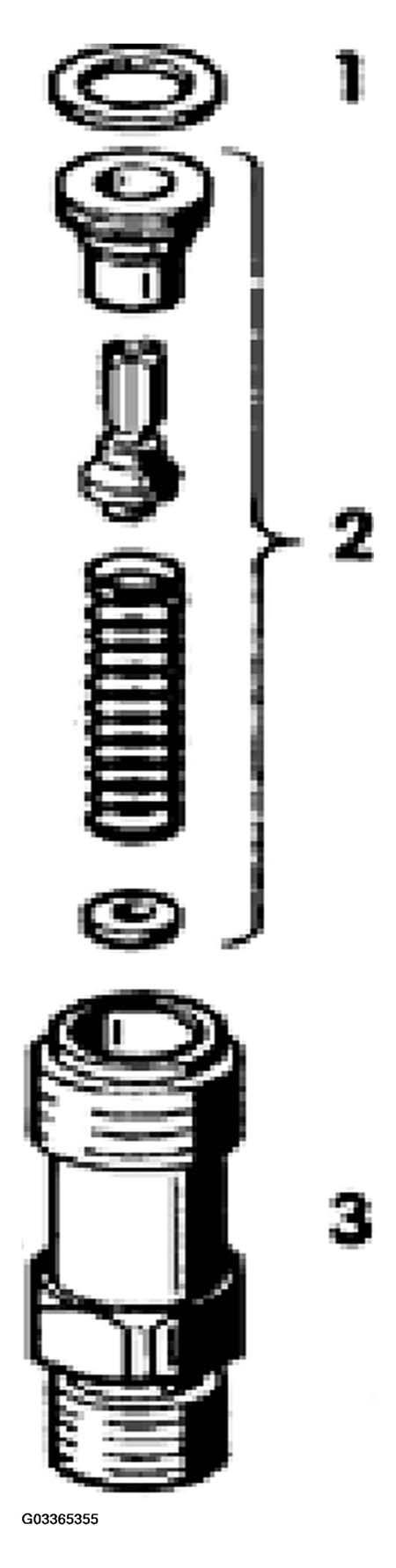

Fig 1: Identifying Diesel Injection Pump Connector Components

CAUTION: Do not mix up the pressure valves when replacing the connector.
