Checking/adjusting conditions
WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Minimum oil temperature 60°C (140°F).
- Cold start accelerator cable must not be pulled
- All electrical consumers switched OFF
Engine speed (RPM) can be measured using the VAG 1367 engine tester with TDC sensor or adapter VW 1324.

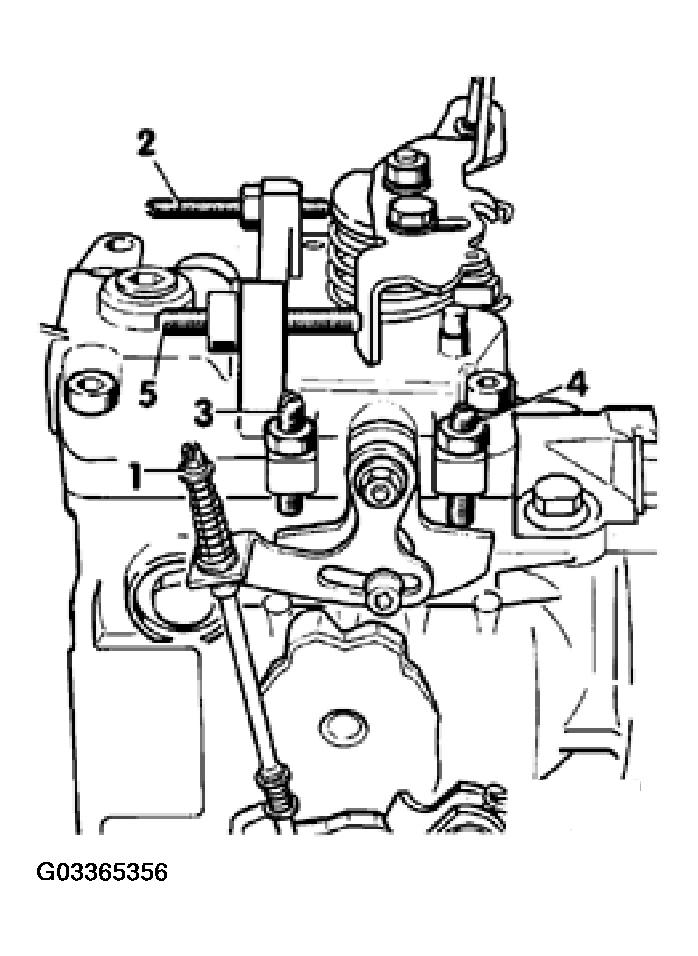

The following list pertains to Fig 1 .
- - Idle speed adjusting screw
- - Maximum engine speed (RPM) adjusting screw
- - Stop screw for minimum idle speed
- - Stop screw for maximum idle speed (idle speed boost)
- - Residual fuel volume adjusting screw
