EGR system components, removing and installing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

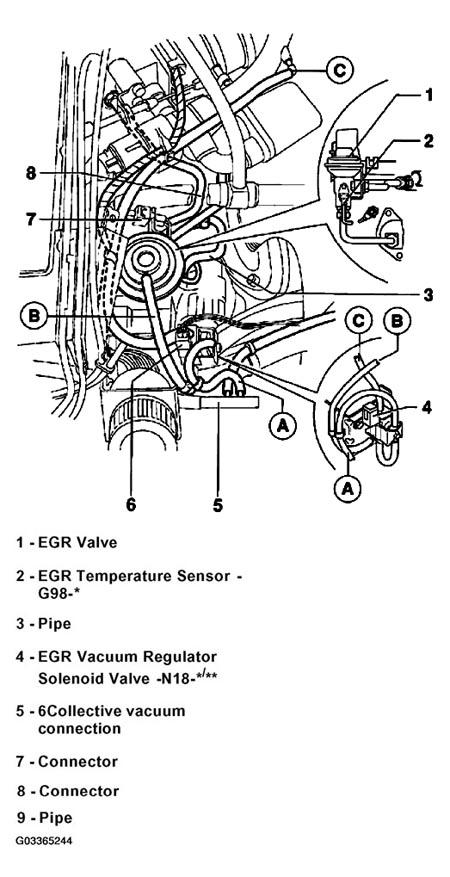

The following list pertains to Fig 1 .
- EGR Valve
- Checking, see EGR VALVE AND EGR TEMPERATURE SENSOR, CHECKING
- EGR Temperature Sensor - G98-
- Tightening torque: 20 Nm (15 ft lb)
- Checking, see EGR VALVE AND EGR TEMPERATURE SENSOR, CHECKING
- Pipe
- For exhaust gas inlet
- EGR Vacuum Regulator Solenoid Valve -N18-
- Two-way valve
- Collective vacuum connection
- For intake manifold vacuum
- Connector
- 2-pin
- For EGR Vacuum Regulator Solenoid Valve -N18- -4-
- Connector
- 2-pin
- For EGR Temperature Sensor -G98-
- Pipe
- For exhaust gas outlet
