Checking fuel tank and fuel filler cap
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Remove fuel filler cap.

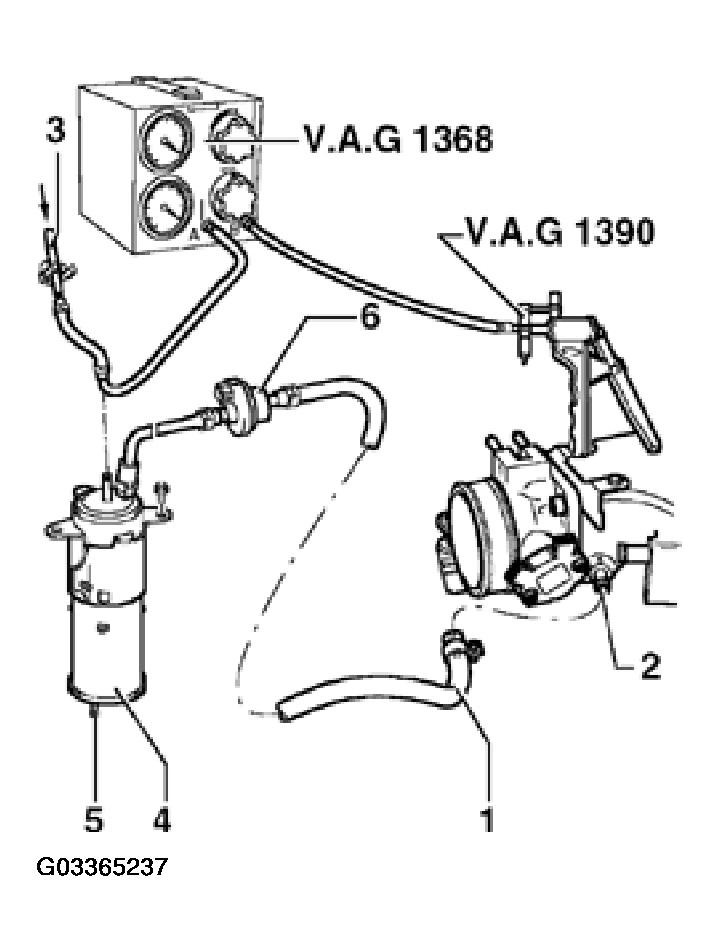

- Connect hand vacuum pump US 8026/VAG 1390 to vacuum tester VAG 1368/US 9204 connection -B-.
- Connect vent hose -3- (from fuel tank) to vacuum tester VAG 1368/US 9204 connection -A-.
- Set vacuum tester to -A/B - position.
- Operate vacuum pump US 8026/VAG 1390 several times.
- Vacuum must not build up.
If vacuum builds up:
- Check gravity valve. See FUEL FILTER AND FUEL TANK WITH ATTACHMENTS, REMOVING AND INSTALLING , item -5-.
- Check line -3- (from fuel tank) for blockage.
If vacuum does not build up:
- Install fuel filler cap.
- Operate hand vacuum pump US 8026/VAG 1390 several times.
NOTE:
If fuel level is low, it will take longer to build vacuum. The pump must be operated at least 20 to 30 times.
If vacuum builds up:
- Replace fuel filler cap.
