Cooling system, body side components, removing and installing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

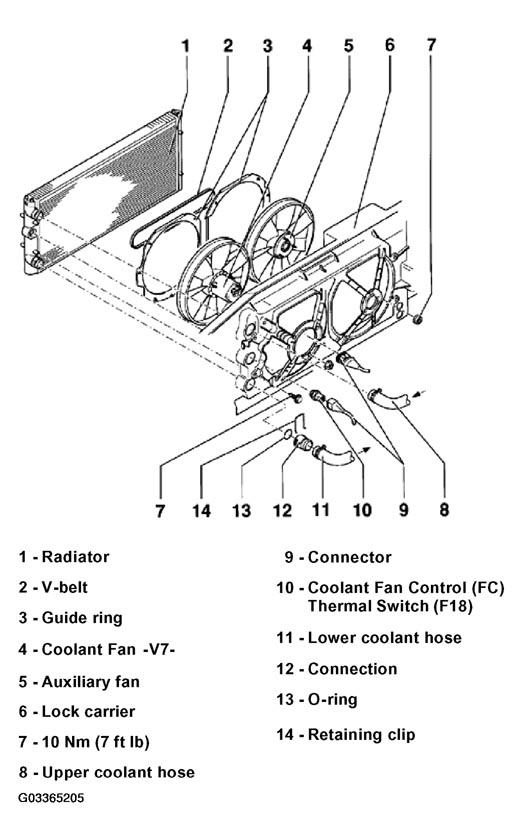

The following list refers to items in Fig 1
.
- - Radiator
- Removing and installing RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- After replacing, replace all engine coolant
- - V-belt
- - Guide ring
- Note installation position
- Secured on lock carrier -6- with clips
- - Coolant Fan -V7-
- Removing and installing RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- - Auxiliary fan
- Removing and installing RADIATOR AND COOLANT FAN, REMOVING AND INSTALLING
- - Lock carrier
- - 10 Nm (7 ft lb)
- - Upper coolant hose
- From thermostat housing, item - 18 -
- - Connector
- - Coolant Fan Control (FC) Thermal Switch (F18)
- Tightening torque: 35 Nm (26 ft lb)
- For Coolant Fan (V7) - 4 -
- Switching temperatures:
Stage 1
ON: 92-97 °C (197-206 °F)
OFF: 84-91 °C (183-195 °F)
Stage 2
ON: 99-105 °C (210-221 °F)
OFF: 91-98 °C (195-208 °F)
- - Lower coolant hose
- To thermostat housing, item - 19 -
- - Connection
- - O-ring
- Always replace
- - Retaining clip
- Check to make sure clip is seated securely
