Coolant pump, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- With ignition switched OFF, disconnect Battery Ground (GND) strap.
CAUTION:
Obtain radio code before disconnecting battery.
- Disconnect exhaust pipe from flange on Three Way Catalytic Converter (TWC). See EXHAUST MANIFOLD, FRONT EXHAUST PIPE AND THREE WAY CATALYTIC CONVERTER (TWC) WITH ATTACHMENTS, REMOVING AND INSTALLING .
- Drain coolant, see COOLING SYSTEM, DRAINING AND FILLING .
- Remove poly-ribbed belt. See POLY-RIBBED BELT, REMOVING AND INSTALLING .
- Remove Intake Air duct:

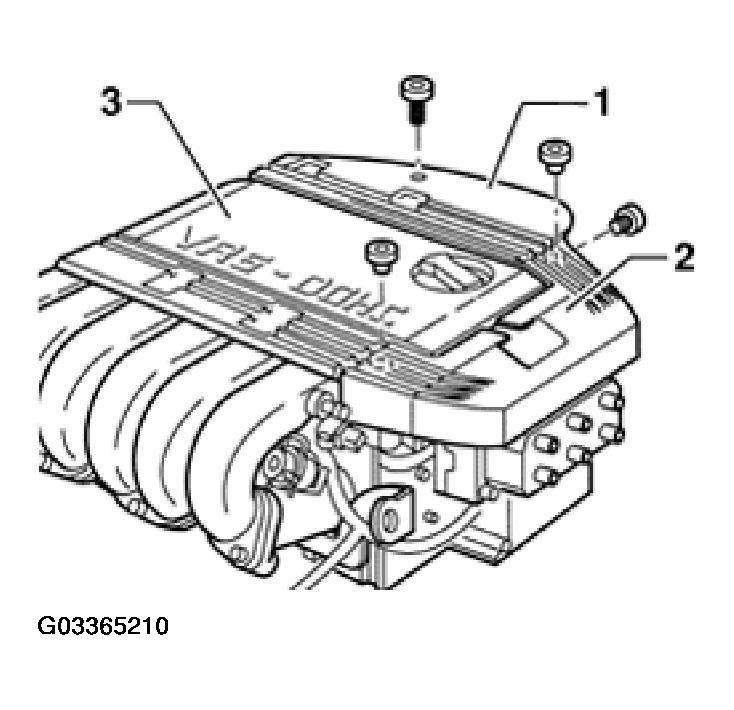

- Disconnect Spark Plug cables from Ignition Coil (N152) and unclip them from cable guide -2-.
- Remove cable guide -2-.
- Disconnect vacuum hose between upper intake manifold and Fuel Pressure Regulator.
- Remove Intake Air Temperature (IAT) Sensor -G42- from upper intake manifold.
Detach coolant expansion tank and place to side; hoses remain connected.

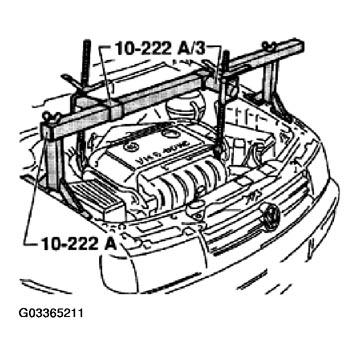

- Mount engine support bridge 10 -222A with adapter 10-222A/3.
Connect engine support bridge to lifting eyes on left and right sides of cylinder head and lift slightly to take -up weight of engine.
Disconnect transmission at left rear engine/ transmission mount.

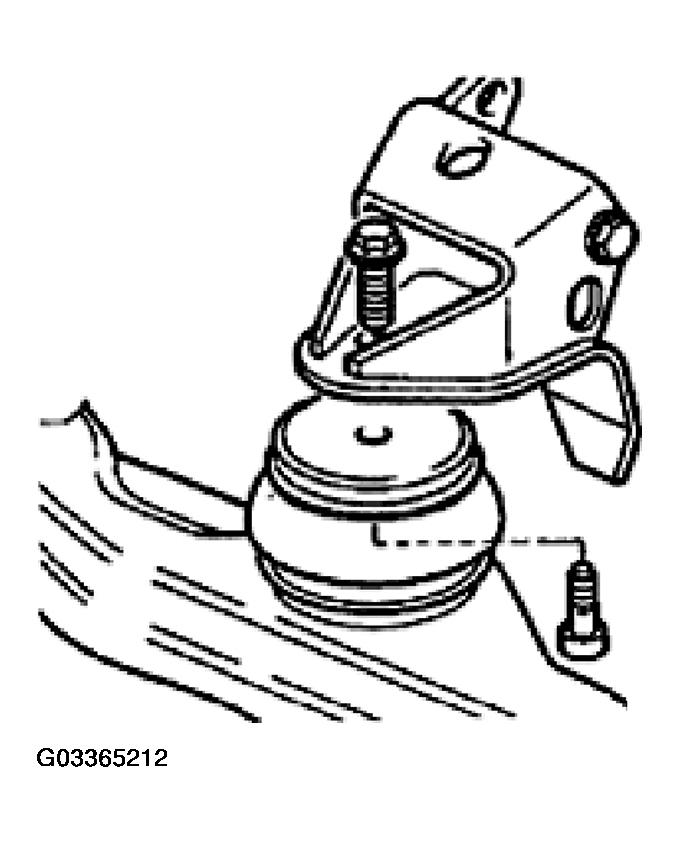

Disconnect engine at right rear engine/transmission mount.
- From above, disconnect engine from front engine/transmission assembly mount.
- Carefully lift engine.
- Remove coolant pump pulley (use VAG 1590 coolant pump wrench to loosen and tighten the mounting bolt).
NOTE:
If necessary modify VAG 1590 coolant pump wrench. See Figure
.
- Remove coolant pump.
NOTE:
To gain clearance for removing and installing the coolant pump, push the engine by hand slightly to left.
