Oil pump, disassembling and assembling: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

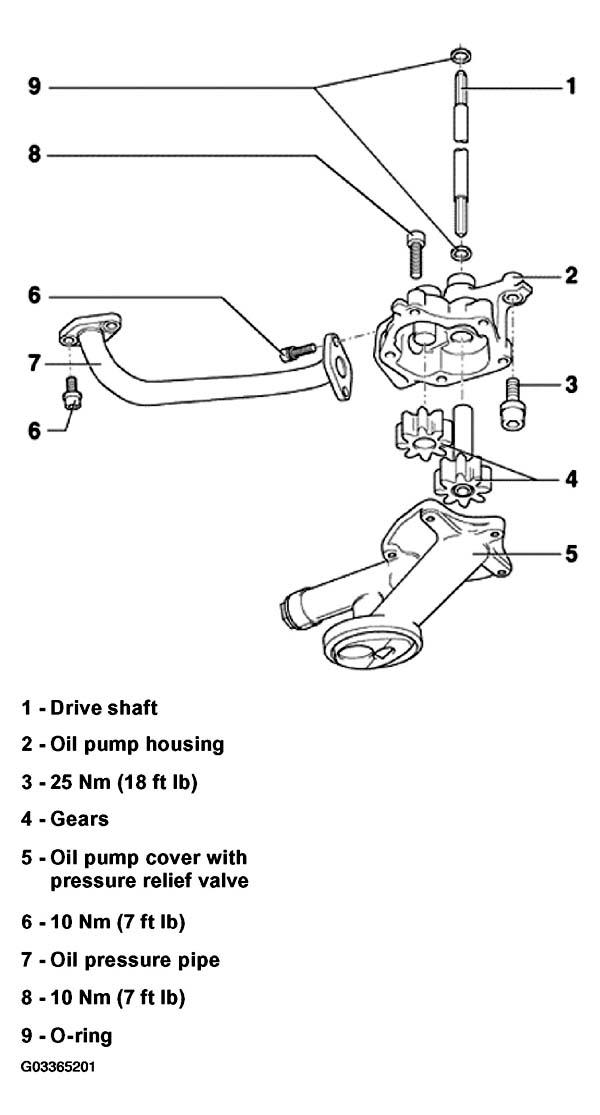

The following list pertains to Fig 1.
- Drive shaft
- For oil pump drive
- Oil pump housing
- 25 Nm (18 ft lb)
- Gears
- Checking backlash, See Checking Oil Pump Backlash
- Checking axial clearance Checking Oil Pump Axial Clearance
- Oil pump cover with pressure relief valve
- Opening pressure: 5.3 -5.7 bar (77 -83 psi)
- Clean strainer if soiled
- 10 Nm (7 ft lb)
- Always replace
- Install with locking fluid "D6"
- Oil pressure pipe
- Coat flanges at cylinder block and oil pump housing with AMV 188 001 02 sealant
- 10 Nm (7 ft lb)
- O-ring
- Replace if damaged
