Removing And Installing Oil Spray Nozzle

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Oil spray nozzles are installed at main bearings 2-7.

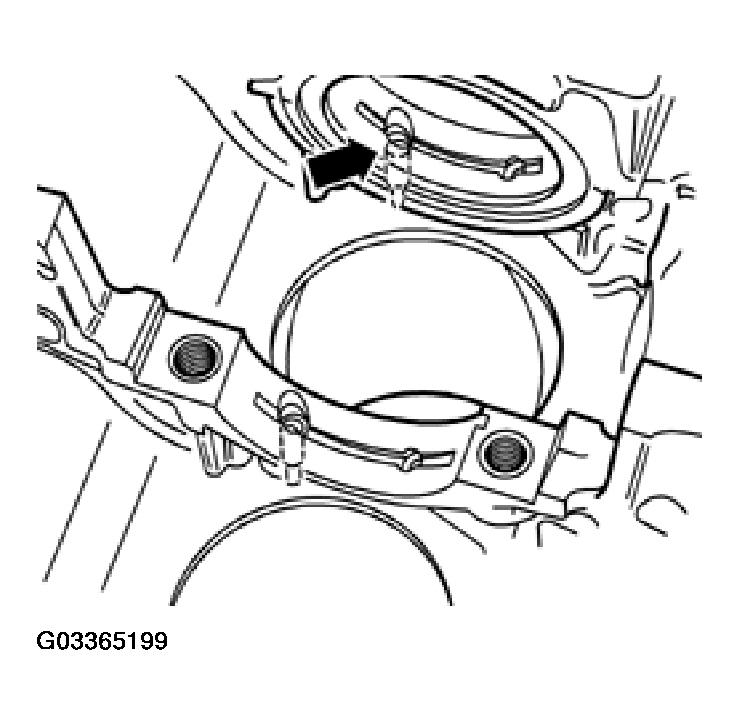

Fig 1: Identifying Oil Spray Nozzle
G03365199
