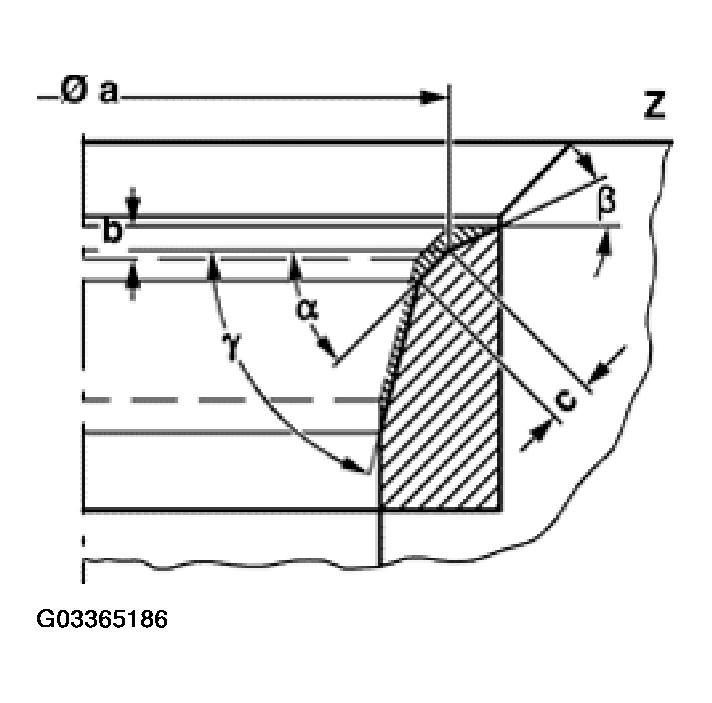

REWORKING INTAKE VALVE SEAT
| Application | Specification |
|---|---|
| -a- | = Diameter 38.3 mm (1.508 in.) |
| -b- | = Max. permissible reconditioning dimension (calculated %, see MAXIMUM PERMISSIBLE RECONDITIONING DIMENSION, CALCULATING ) |
| -c- | = Valve seat width 1.4-2.0 mm (0.055-0.079 in.) |
| if necessary recondition valve seat insert with 755 correction cutter (angle -g-) | |
| -Z- | = Cylinder head lower surface |
| -Alpha- | = 455 valve seat angle |
| -Beta- | = 305 upper correction angle |
| -Y- | = 755 lower correction angle |
