Maximum permissible reconditioning dimension, calculating: Notes

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Insert valve and press firmly against seat.

NOTE: If the valve is to be replaced as part of a repair, use a new valve for the measurement and calculation.

Measure distance between end of valve stem and top edge of cylinder head -arrow-.
Calculate max. permissible reconditioning dimension using measured distance and minimum dimension specification.

Minimum dimensions:

Intake valve: 33.9 mm (1.335 in.)
Exhaust valve: 34.1 mm (1.343 in.)

Measured distance minus minimum dimension = max. permissible reconditioning dimension.

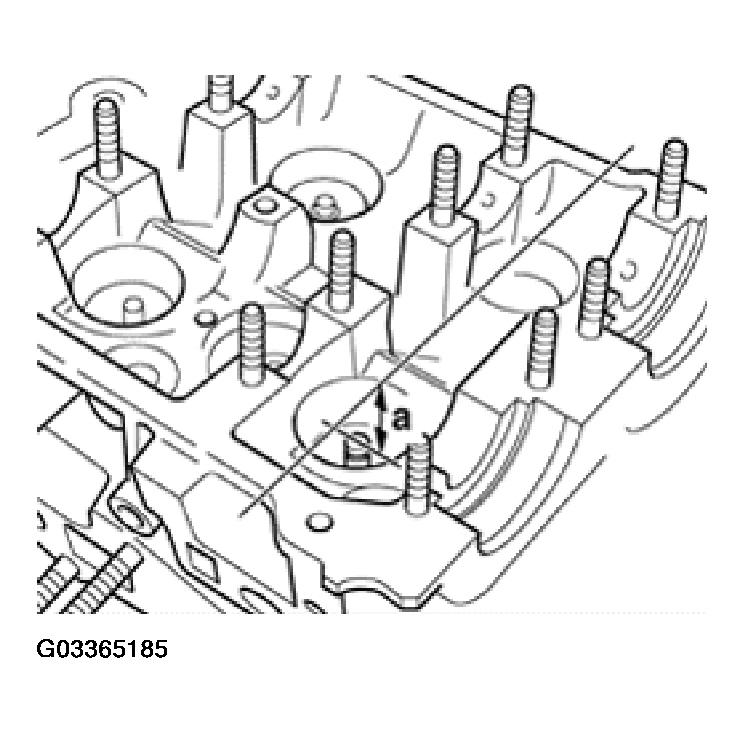

Fig 1: Measuring Distance Between End Of Valve Stem & Top Edge Of Cylinder Head

Example (exhaust valve):

CYLINDER HEAD RECONDITIONING - MEASURING EXAMPLE

Measurement	Dimension
Measured distance - Minimum dimension (exhaust)	34.8 mm 34.1 mm
= Max. perm. recondition. dimension	0.7 mm
