Valve guides, checking and replacing: Checking
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Insert new valve into guide until end of valve stem is flush with end of guide.
NOTE:
- There are slight differences between intake and exhaust valve stem dimensions.
- Make sure that only an intake valve is used in the intake guide and only an exhaust valve is used in the exhaust guide.

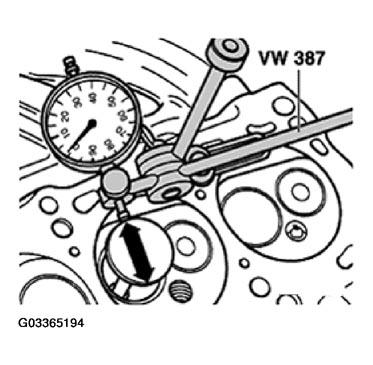

- Determine valve guide play by measuring side-to-side play at valve head:
Wear limit:
- Intake valve guide 1.0 mm (0.040 in.)
- Exhaust valve guide 1.3 mm (0.051 in.)
