Camshafts, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Set engine to Cylinder 1 Top Dead Center (TDC) marks by turning crankshaft in direction of engine rotation using vibration damper mounting bolt, following the procedure for checking valve timing Repair Group 13.
- Remove cylinder head cover, see CYLINDER HEAD COVER, REMOVING AND INSTALLING
- Remove Ignition Coil (N152).
See MOTRONIC IGNITION SYSTEM, COMPONENTS
- Remove double chain tensioner.
- Remove camshaft cover with Camshaft Position (CMP) Sensor -G40-.
- Loosen mounting bolts for camshaft sprockets.
NOTE:

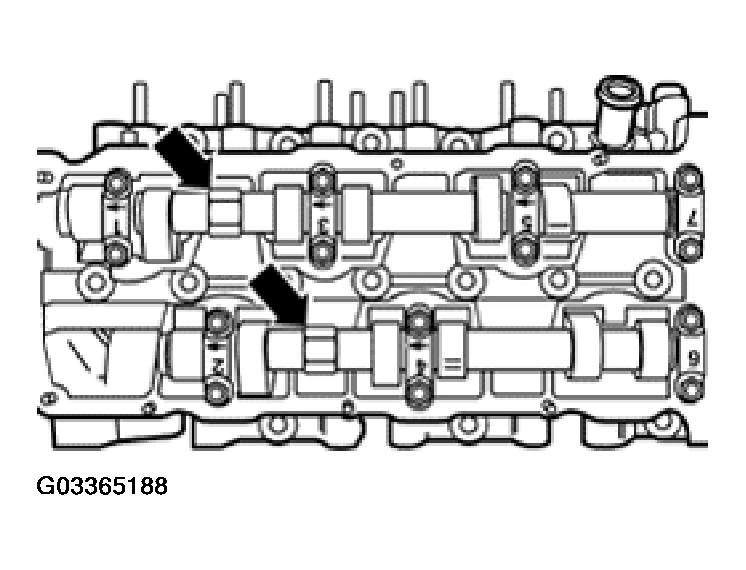

Only counter-hold camshaft with 24 mm open-end wrench using flats on camshafts -arrows-.
CAUTION:
Camshaft jig 3268 must not be installed when tightening or loosening the camshaft sprockets.
- Remove camshaft sprockets.

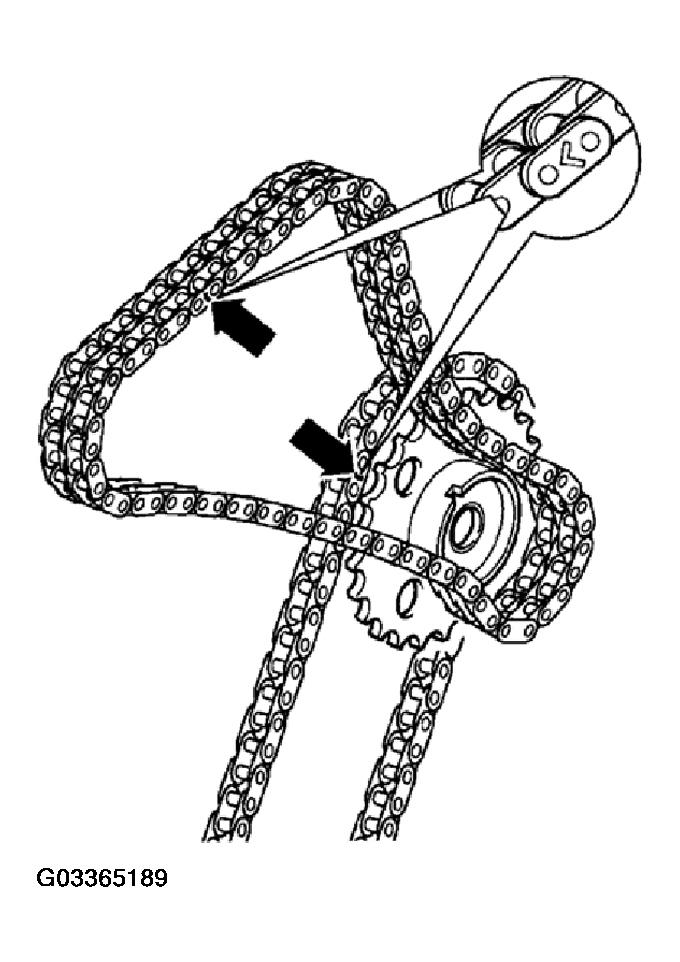

- Mark double chain before removing (e.g. with paint, arrow pointing in direction of rotation).
CAUTION:
Do not mark chains with a center punch or any similar means!
Camshaft for cylinders 1, 3 and 5:

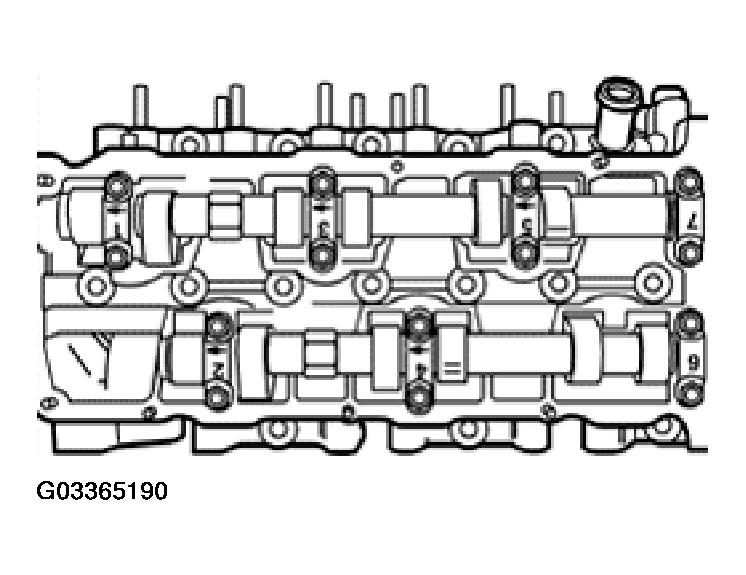

- First remove bearing caps -1- and -7-.
- Slowly loosen bearing caps -3- and -5-. Alternate diagonally to loosen caps evenly.
Camshaft for cylinders 2, 4 and 6:
- First remove bearing cap -4-.
- Slowly loosen bearing caps -2- and -6-. Alternate diagonally to loosen caps evenly.
