Drive plate, removing and installing: Installing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Mount drive plate on crankshaft.
- Install at least 3 old mounting bolts and tighten.
- Tightening torque: 30 Nm (22 ft lb)

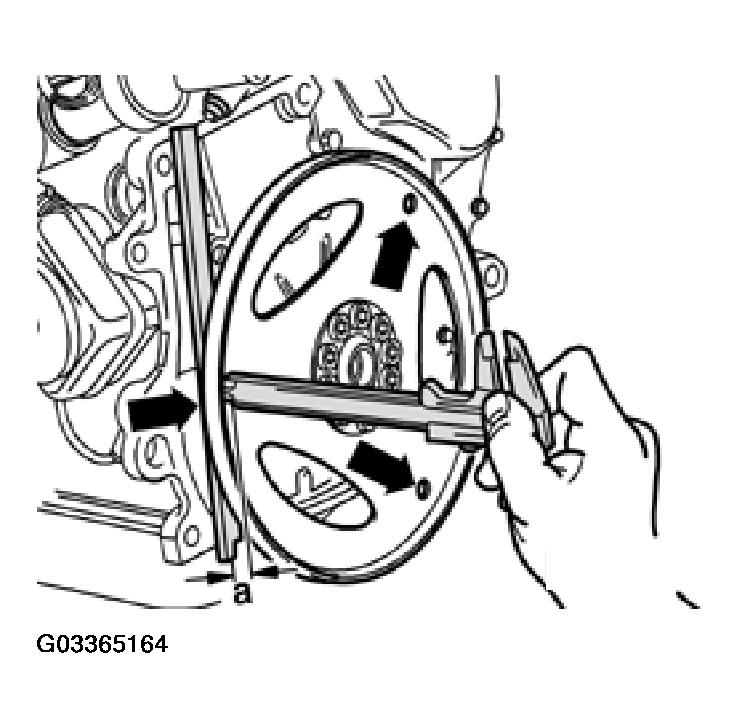

- Check dimension -a- by using a straight edge and depth gauge to measure through the three holes for mounting torque converter. Calculate the average.
- Compare average measurement with specification.
- Specification (measured distance + thickness of straight edge): 15.7-16.5 mm (0.606-0.650 in.)
If the specified dimension is not obtained:

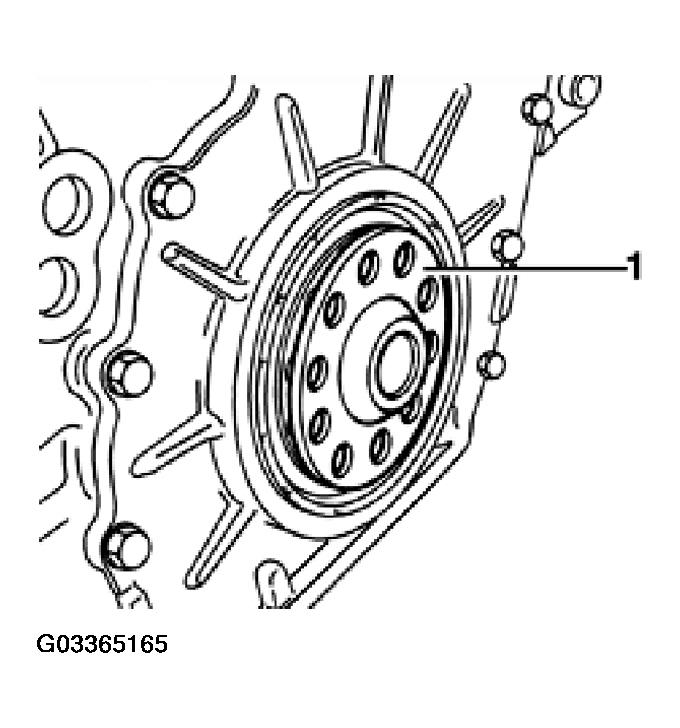

- Remove drive plate again and fit appropriate shim -1-.
If the specification is obtained:
- Install drive plate using new mounting bolts and tighten.
Tightening torque:
- Stage I: 60 Nm (44 ft lb)
- Stage II: an additional 1/4 turn (90 °)
