Checking Ring To Groove Clearance

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
CHECKING RING TO GROOVE CLEARANCE

Piston ring Gap
New Wear limit
Compression rings (mm) 0.02-0.07 0.15
Oil scraper ring (mm) 0.02-0.06 0.15

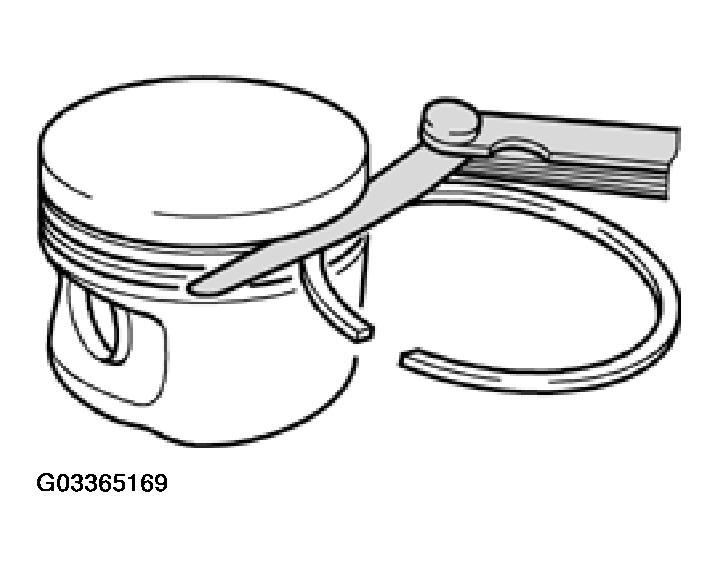

Fig 1: Checking Ring To Groove Clearance
G03365169

Clean ring groove before check.
