Valve timing, checking: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Set crankshaft to Cylinder 1 Top Dead Center (TDC) marks by turning crankshaft, in direction of engine rotation, using vibration damper mounting bolt:

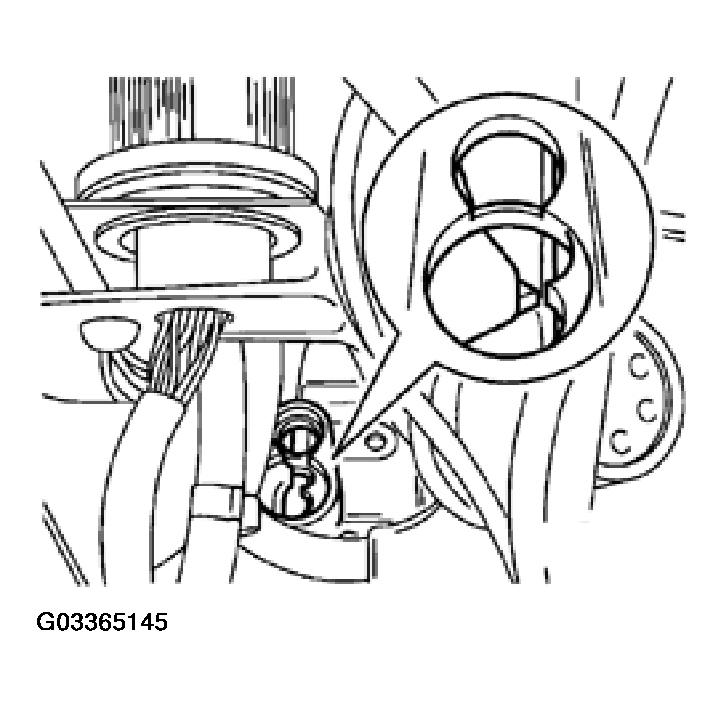

Vehicles with manual transmission (engine installed)
The timing mark on the pressure plate (triangular tooth) must align with the reference point on the clutch housing.

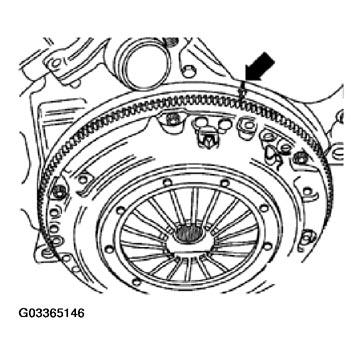

Vehicles with manual transmission (engine removed)
The TDC mark milled in the flywheel must align with the reference point -arrow- cast on the flange.

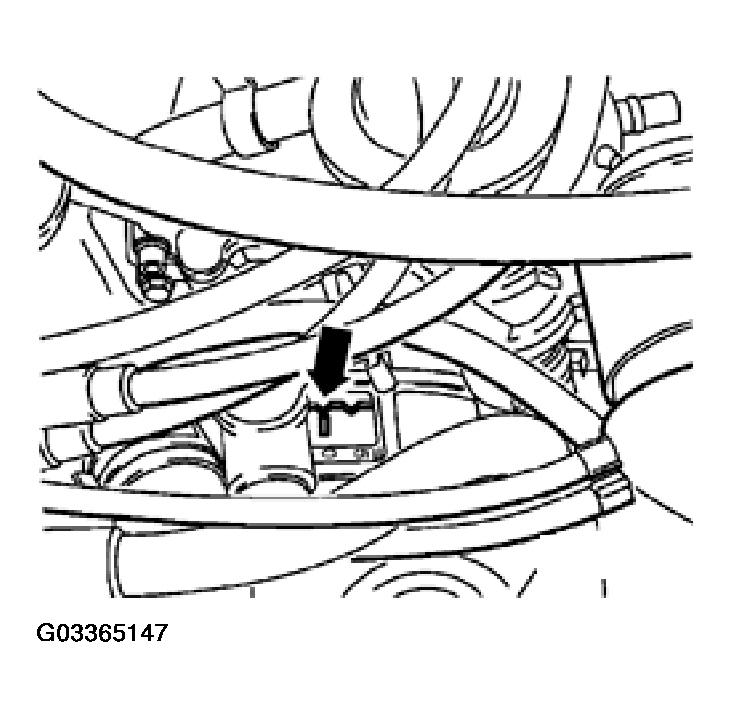

Vehicles with automatic transmission (engine installed)
CAUTION:
- The torque converter has three Cylinder 1 TDC marks -arrow-, as the hole pattern for mounting the torque converter allows it to be fitted in three different positions.
- It is absolutely necessary to verify Cylinder 1 TDC by checking piston position through the spark plug hole.
- If necessary turn the crankshaft by 120° or 240° in direction of engine rotation.

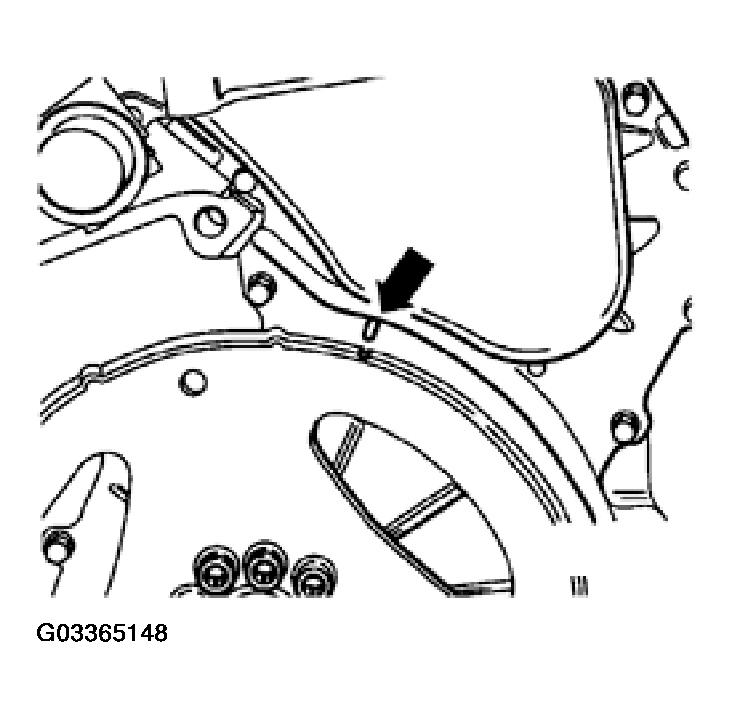

Vehicles with automatic transmission (engine removed)
The mark milled in the drive plate must align with the reference point -arrow- cast on the flange.
