Continued for all vehicles

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This condition, where the camshaft grooves are aligned, is only possible on every 2nd TDC position.

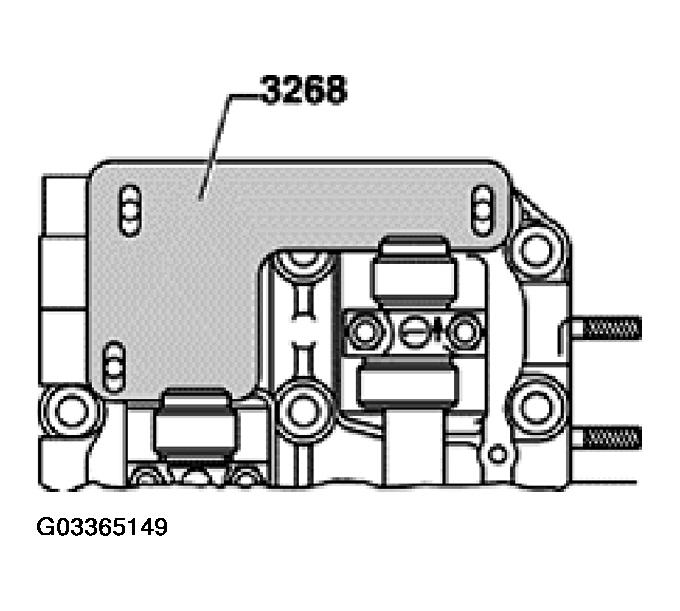

Fig 1: Installing Camshaft Jig 3268
G03365149
