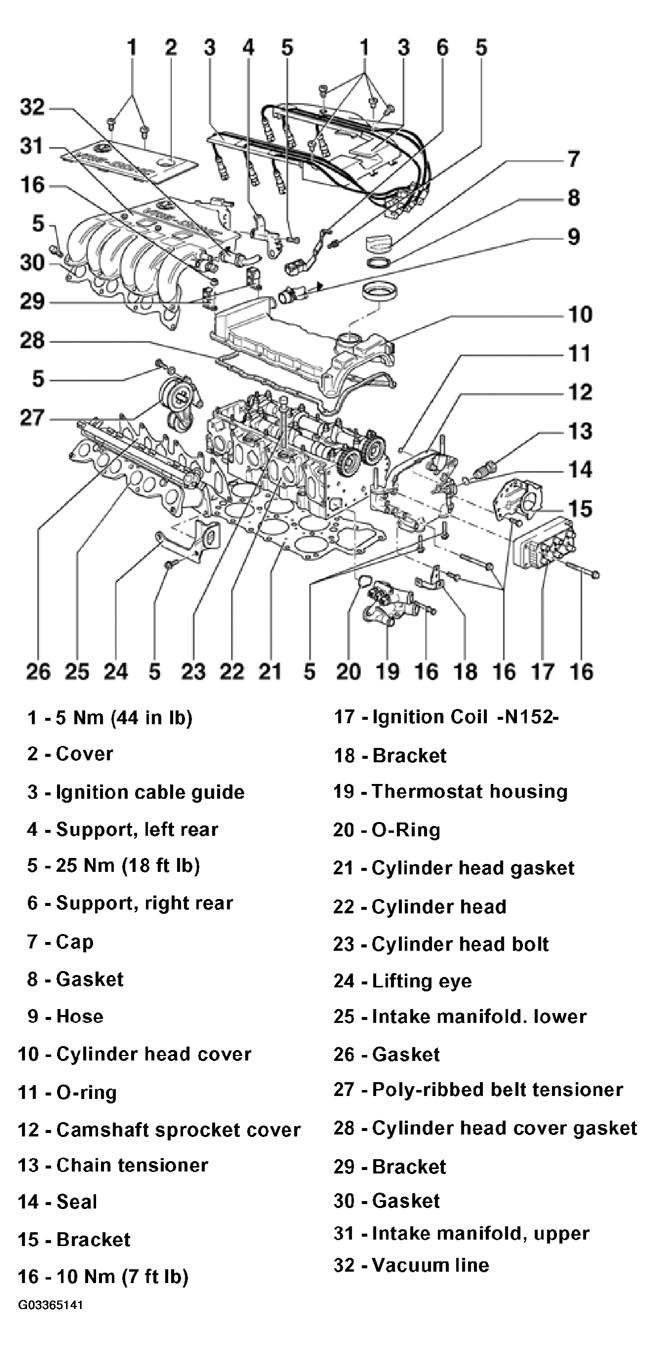

The following list pertains to Fig 1.
- 5 Nm (44 in lb)
- Cover
- Over upper intake manifold
- Ignition cable guide
- Support, left rear
- Between upper intake manifold and cylinder head
- With engine Ground (GND) connection
- 25 Nm (18 ft lb)
- Support, right rear
- Between upper intake manifold and cylinder head
- With bracket for fuel lines
- Cap
- Gasket
- Replace if damaged
- Hose
- For Positive Crankcase Ventilation (PCV) breather
- 08.93 and up to Positive Crankcase Ventilation (PCV) breather valve
- Cylinder head cover
- Removing and installing, See CYLINDER HEAD COVER, REMOVING AND INSTALLING
- O-ring
- Always replace
- Coat with oil before assembling, and insert in camshaft sprocket cover, item - 12 -
- Camshaft sprocket cover
- Can be removed and installed without removing cylinder head
- Coat sealing surfaces with AMV 188 001 02 sealant
- If only the camshaft sprocket cover has been removed, prepare cylinder head gasket for assembly, see Cylinder head gasket
- Chain tensioner
- Tightening torque: 30 Nm (22 ft lb)
- For double chain
- Bleed before installing, See Bleeding double chain tensioner
- Rotate engine only when chain tensioner is installed
- Seal
- Always replace
- Bracket
- For 42-pin connector and After-Run Coolant Pump -V51-
- 10 Nm (7 ft lb)
- Ignition Coil -N152-
- Checking:
- Bracket
- For electrical wiring
- Thermostat housing
- Disassembling and assembling, See COOLANT THERMOSTAT HOUSING, DISASSEMBLING AND ASSEMBLING
- O-Ring
- Always replace
- Cylinder head gasket
- Always replace
- When replacing: also replace engine coolant
- Cylinder head
- Removing and installing, see Cylinder Head
- When replacing: also replace engine coolant
- Cylinder head bolt
- Always replace
- Note sequence for loosening and tightening, see Cylinder Head Bolt
- Lifting eye
- Intake manifold. lower
- Gasket
- For lower intake manifold, item -25 -
- Always replace
- Poly-ribbed belt tensioner
- Removing and installing poly-ribbed belts, see POLY-RIBBED BELT, REMOVING AND INSTALLING
- Cylinder head cover gasket
- Replace if damaged
- Note installation position
- Bracket
- For fuel lines
- Gasket
- For upper intake manifold, item -31 -
- Always replace
- Intake manifold, upper
- Installing: first tighten lower intake manifold, then left and right rear supports, items - 4 - and - 6 -
- Vacuum line
- To vacuum brake booster
