Vehicles with automatic transmission
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect selector lever cable from transmission:
See TRANSMISSION, REMOVING AND INSTALLING

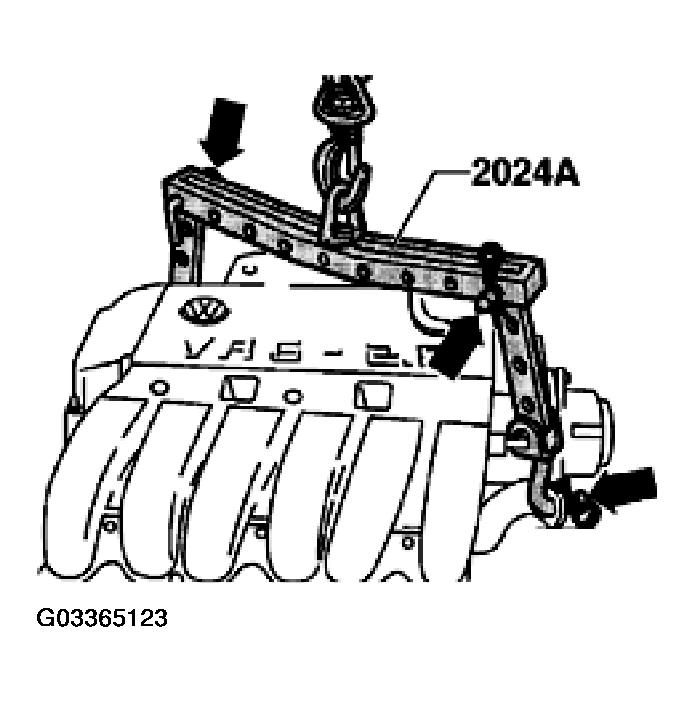

- Attach 2024 A engine sling with 2024 A/1 extension as follows, and lift slightly with workshop crane:
Vibration damper end:
- 1st hole in extension at cross bar position -1-
Flywheel end:
- 3rd hole in extension at cross bar position -6-
CAUTION:
Use cotter pins on hooks and pins.
NOTE:
- The end of the cross bar marked with installation positions 1-4 points toward the vibration damper.
- The holes in the hooks are counted up from the hook end.
