- Check whether the dowel sleeves for centering engine and transmission are in the cylinder block, install if necessary.
- When lowering engine/transmission assembly into position, make sure that clearance exists between assembly and axle shafts.

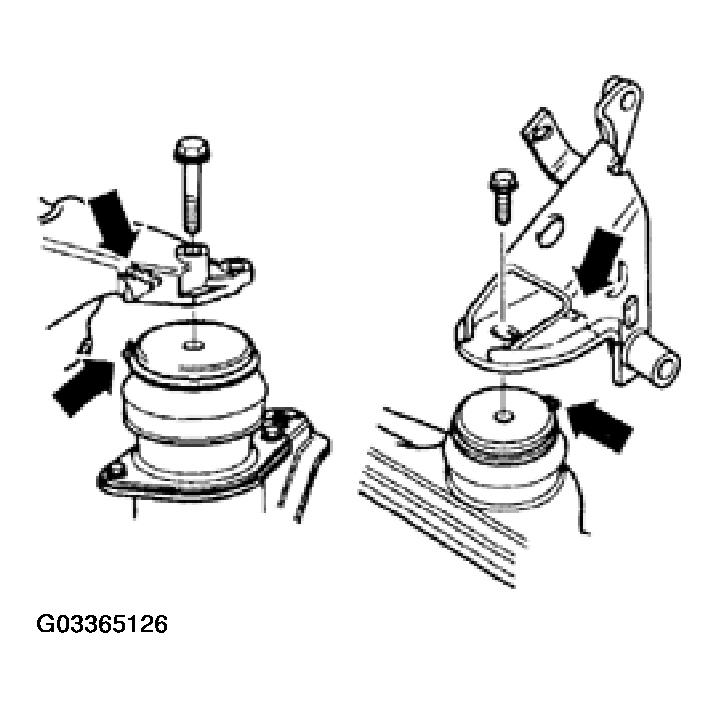

When installing right rear and front engine/transmission mounts, make sure that recesses on brackets -upper arrows- engage lugs on bonded rubber mounts -lower arrows-.
- Install all engine/transmission assembly mounting bolts by hand and thread in approx. 5 -6 turns.
- Align and relieve stress on mounts by rocking engine/transmission assembly.
- Tighten front and right rear mounts.
- Tightening torques, see ENGINE/TRANSMISSION ASSEMBLY, TIGHTENING TORQUES

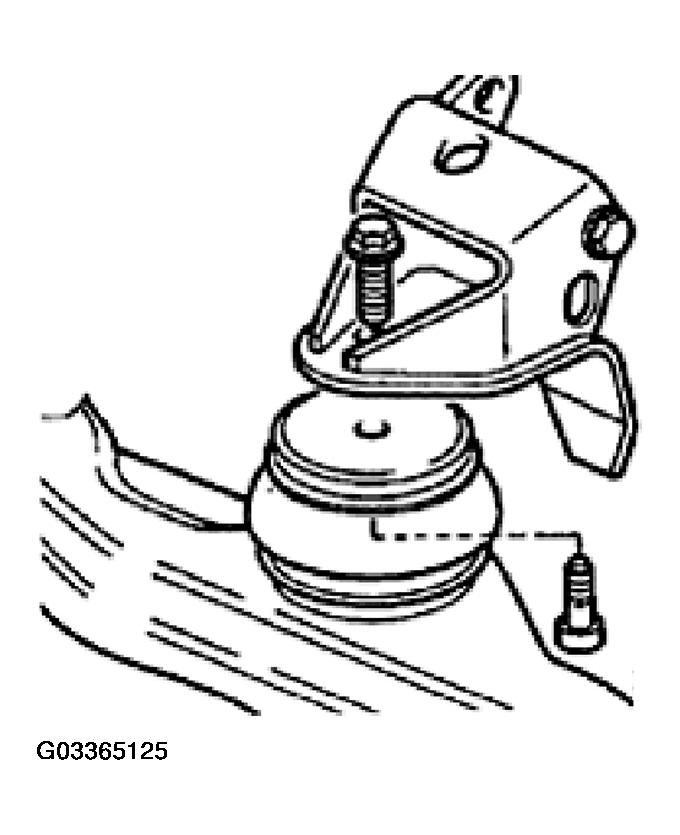

- Tighten left rear mount.
- Tightening torque, see ENGINE/TRANSMISSION ASSEMBLY, TIGHTENING TORQUES
- Install power steering pump:
- Install lock carrier with attachments:
- -->Install Intake Air duct:
For model years 1993 - 1995, see MOTRONIC MULTIPORT FUEL INJECTION (MFI) SYSTEM, COMPONENTS
For model years 1996 - 1999, see MOTRONIC MULTIPORT FUEL INJECTION (MFI) AND IGNITION SYSTEM
- Install poly-ribbed belt, See POLY-RIBBED BELT, REMOVING AND INSTALLING .
- Fill engine cooling system, See COOLING SYSTEM, DRAINING AND FILLING .
- Adjust Accelerator Pedal cable, See POLY-RIBBED BELT, REMOVING AND INSTALLING .
- Check Diagnostic Trouble Code (DTC) Memory:
For model years 1993 - 1995, see DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING
For model years 1996 - 1999, see CHECK DTC MEMORY (SCAN TOOL FUNCTION 02)
- Check idle speed and ignition timing:
- Check headlight aiming and adjust if necessary:
