Engine carrier rubber mount, replacing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

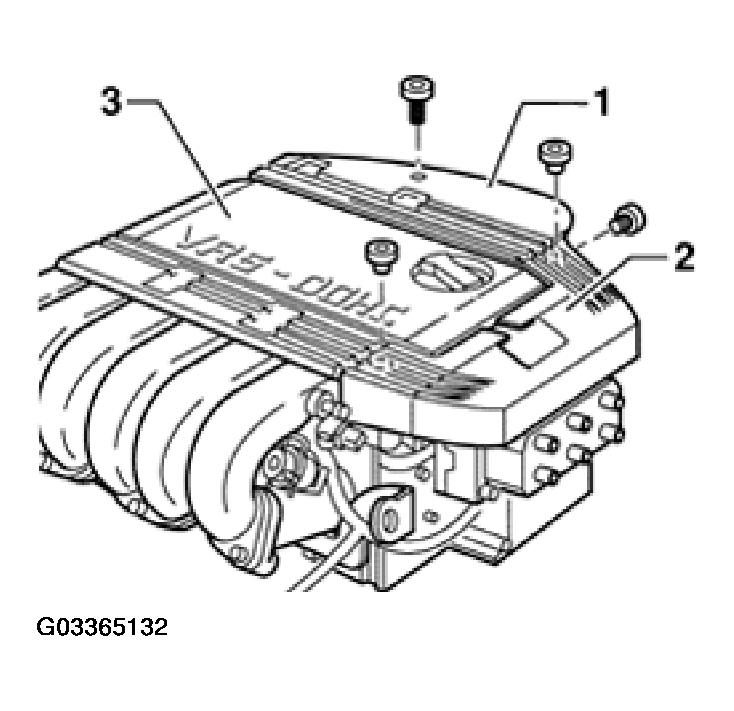

- Disconnect high-voltage cables from Ignition Coil -N152- and unclip from cable guide -2-.
- Remove cable guide -2-.
- Disconnect vacuum hose between upper intake manifold and Fuel Pressure Regulator.
- Remove Intake Air Temperature (IAT) Sensor -G42- from upper intake manifold.

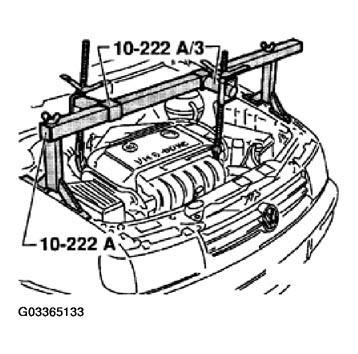

- Mount 10-222 A engine support bridge with 10-222 A/3 engine support adapter.
- Locate support bridge in lifting eyes on left and right of cylinder head and take-up weight of engine.
- Remove engine carrier.
- Remove washers from spacer sleeves with pliers (replace any washers that are damaged, e.g. bent washers).

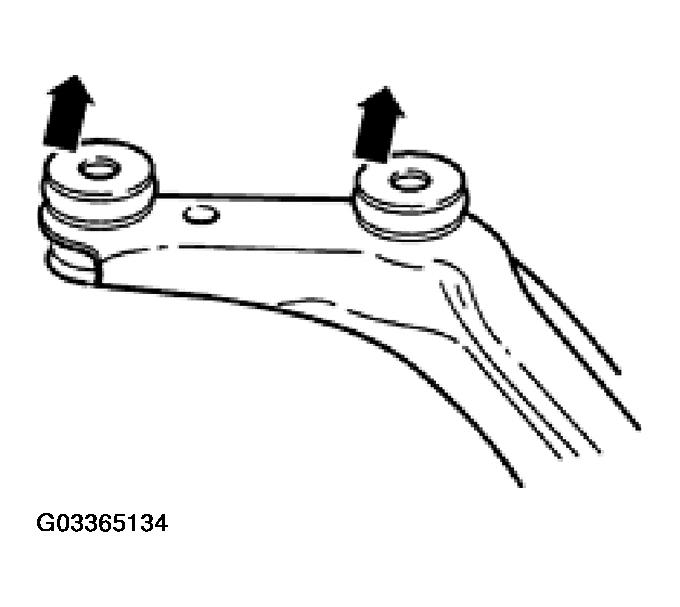

- Pull out spacer sleeves and detach rubber mount.
- Install new rubber mount and insert spacer sleeves as far as possible.

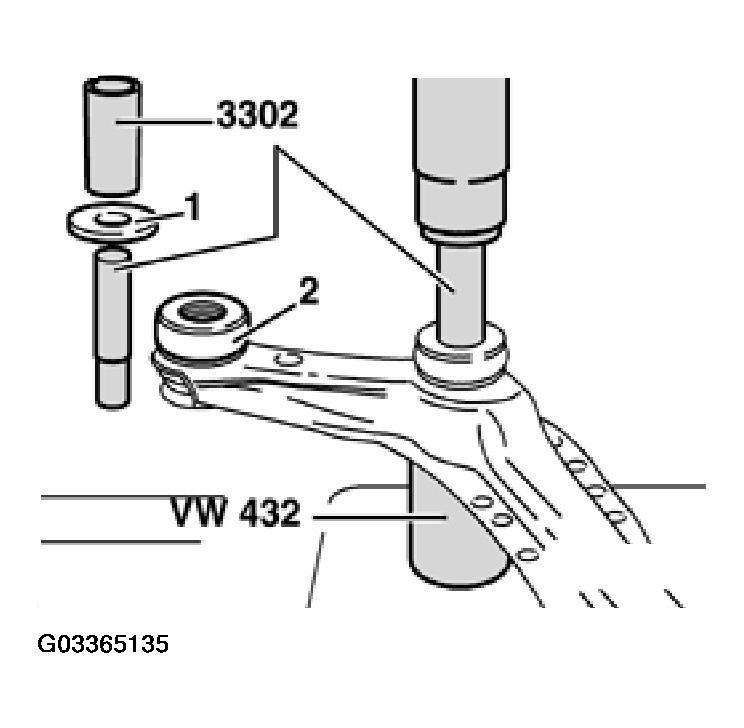

- Install washers -1- over peening tool 3302 and onto rubber mount -2-.
- Place sleeve of peening tool 3302 in position and, using a shop press, press washers onto spacer sleeves and peen. Use VW 432 as backing.
- Remove any resulting protrusion/burr on the peening.
