Engine and transmission, aligning

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Aligning is only necessary when the engine and transmission have been removed and also when the rubber mountings have been loosened at the engine/transmission assembly mounts and the engine carrier.

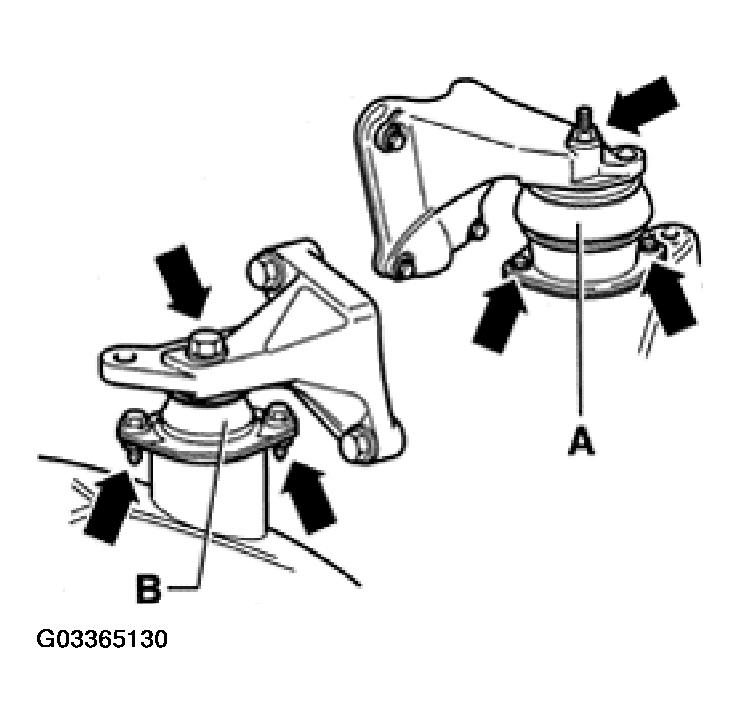

Loosen right rear mount -A- at engine and sub-frame.
Loosen left rear mount -B- at transmission and subframe.

Fig 1: Loosening Right And Left Rear Mounts
Loosen front mount at engine carrier and body.
Align and relieve stress on mounts by rocking engine/transmission assembly.
Tighten front and right rear mounts.
- Tightening torques, see ENGINE/TRANSMISSION ASSEMBLY, TIGHTENING TORQUES
Tighten left rear mount.
- Tightening torque ENGINE/TRANSMISSION ASSEMBLY, TIGHTENING TORQUES

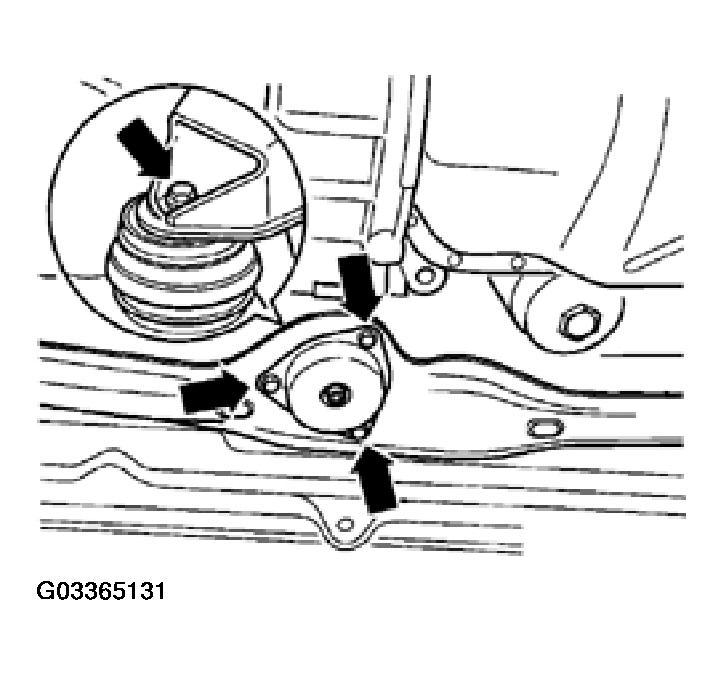

Fig 2: Loosening Front Mount At Engine Carrier & Body
