Golf, Jetta 08.95 and up
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

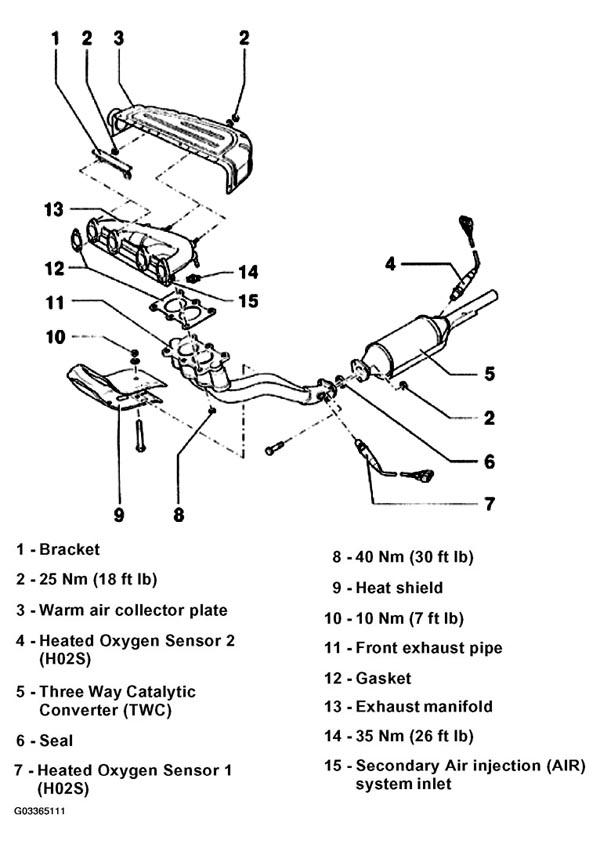

The following list pertains to Fig 1 .
- Bracket
- For warm air collector plate
- 25 Nm (18 ft lb)
- Warm air collector plate
- Heated Oxygen Sensor 2 (H02S)
- Tightening torque: 50 Nm (36 ft lb)
- Installation location: after three way catalytic converter
- Lubricate threads with "G5"
- Grease must not get in or near slots of sensor
- Checking, see appropriate Multiport Fuel Injection (MFI) article
- Three Way Catalytic Converter (TWC)
- Seal
- Always replace
- Heated Oxygen Sensor 1 (H02S)
- 40 Nm (30 ft lb)
- Heat shield
- 10 Nm (7 ft lb)
- Front exhaust pipe
- Gasket
- Always replace
- Exhaust manifold
- 35 Nm (26 ft lb)
- For California only
- Secondary Air injection (AIR) system inlet
- For California only
