Cabrio up to 07.95

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1 .

Bracket
- For warm air collector plate
25 Nm (18 ft lb)
Warm air collector plate
35 Nm (30 ft lb)
Exhaust Gas Recirculation (EGR) valve
- See EXHAUST GAS RECIRCULATION (EGR) VALVE AND EGR TEMPERATURE SENSOR -G98-, CHECKING , item - 8 -.
EGR temperature sensor
- See EXHAUST GAS RECIRCULATION (EGR) SYSTEM COMPONENTS, REMOVING AND INSTALLING (CALIFORNIA ONLY) , item - 2 -
Compression ring
30 Nm (22 ft lb)
EGR tube
Heated Oxygen Sensor (H02S)
- Tightening torque: 50 Nm (36 ft lb)
- Lubricate threads with "G5"
- Grease must not get in or near slots of sensor
- Checking, see appropriate Multiport Fuel Injection (MFI) article.
Three Way Catalytic Converter (TWC)
Seal
- Always replace
40 Nm (30 ft lb)
Heat shield
10 Nm (7 ft lb)
Front exhaust pipe
Gasket
- Always replace
Exhaust manifold
Spacer bushing

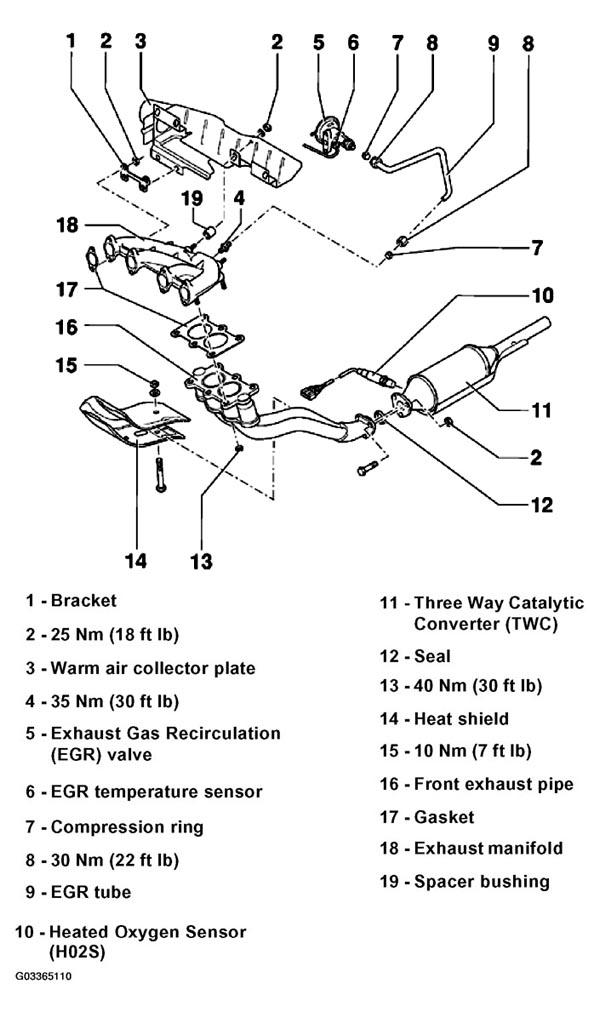

Fig 1: Identifying Exhaust Manifold, Front Pipe And Three Way Catalytic Converter (TWC) (Cabrio Up To 07.95)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
