Exhaust Gas Recirculation (EGR) system components, removing and installing (California only): Notes
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Exhaust Gas Recirculation (EGR) system function is monitored by the On Board Diagnostic system in the Motronic Engine Control Module (ECM) -J220-.

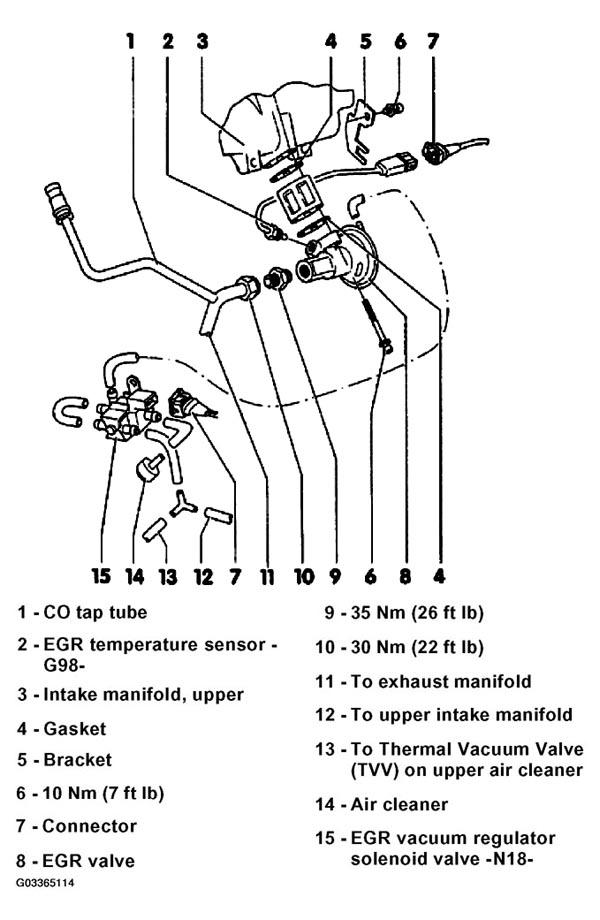

The following list pertains to Fig 1 .
- CO tap tube
- Where applicable
- EGR temperature sensor -G98-
- 20 Nm (15 ft lb)
- Checking, see EXHAUST GAS RECIRCULATION (EGR) VALVE AND EGR TEMPERATURE SENSOR -G98-, CHECKING and the appropriate On Board Diagnostic (OBD) article
- Intake manifold, upper
- Gasket
- Always replace
- Bracket
- 10 Nm (7 ft lb)
- Connector
- EGR valve
- 35 Nm (26 ft lb)
- 30 Nm (22 ft lb)
- To exhaust manifold
- To upper intake manifold
- To Thermal Vacuum Valve (TVV) on upper air cleaner
- Air cleaner
- Dirty air cleaner element can affect performance
- EGR vacuum regulator solenoid valve -N18-
- Checking appropriate On Board Diagnostic (OBD) article
