Fuel pump module, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect Ground strap from battery with ignition switched OFF.
Remove luggage compartment floor covering.
Disconnect harness connector -3- supply line -1- and return line -2- from flange.

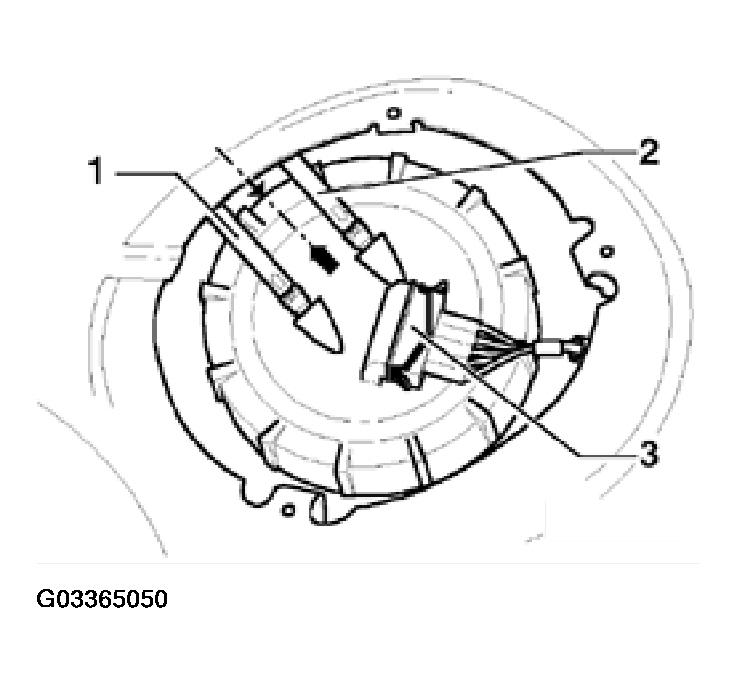

Fig 1: Disconnecting Harness Connector, Supply Line And Return Line From Flange
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove screw cap with tool 3217.
Remove flange and sealing ring from fuel tank opening.
Loosen Fuel Pump (FP) module from bayonet connection by turning to left and remove.

Observe SAFETY PRECAUTIONS

NOTE: If the fuel pump module still contains fuel, empty before replacing.
